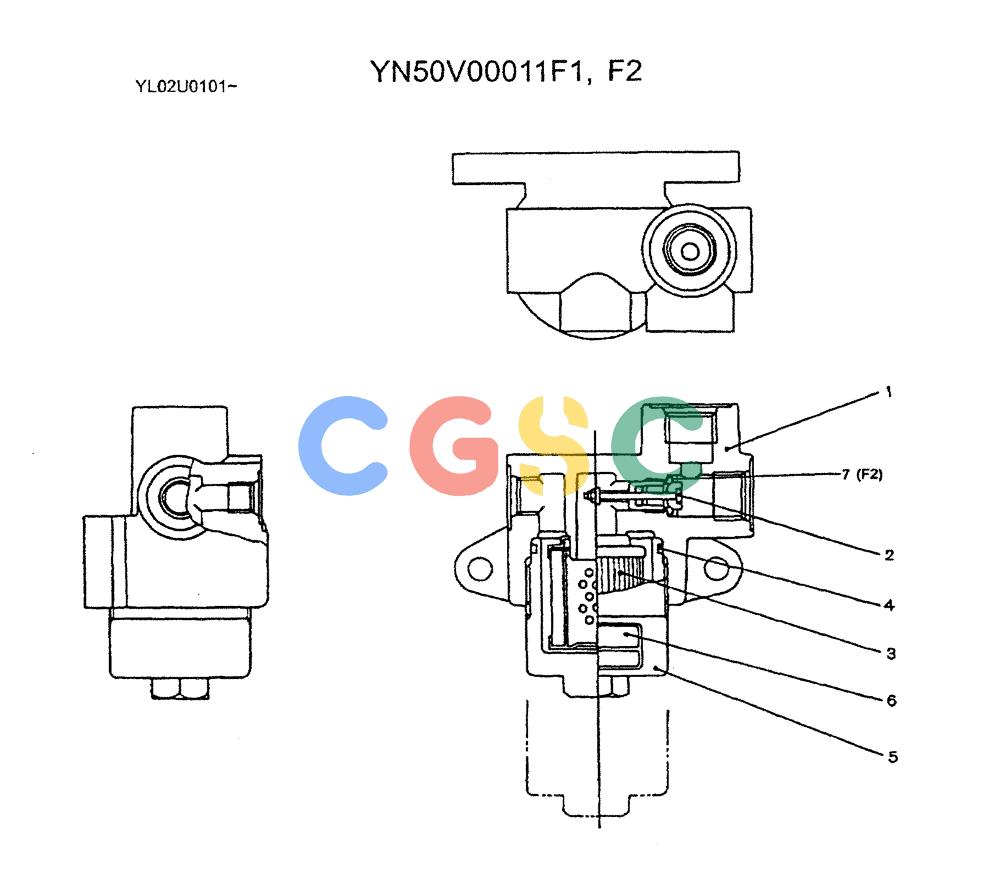

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (06-033) - MANIFOLD ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
782 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN50V00011F1 | [1] | FILTER ASSY | KOBAssembly, Inline Superseded by part number: YN50V00011F2 |
| . . | YN50V00011F2 | [1] | FILTER | KOBAssembly, Inline |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHEAD |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONVALVE, CHECK |
| 3. | YN50V01001S005 | [1] | ELEMENT | KOB Superseded by part number: 84565888 |
| 4. | YN50V01001S007 | [1] | O-RING,2.5mm Thk x 53mm ID, 90 Duro | KOB Superseded by part number: 2446U346S5 |
| 5. | YN50V01001S006 | [1] | BOX | KOB |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONLABEL |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONRING, STOP, (FOR F2) |
