神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (06-034) - VALVE ASSY, PILOT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
755 次

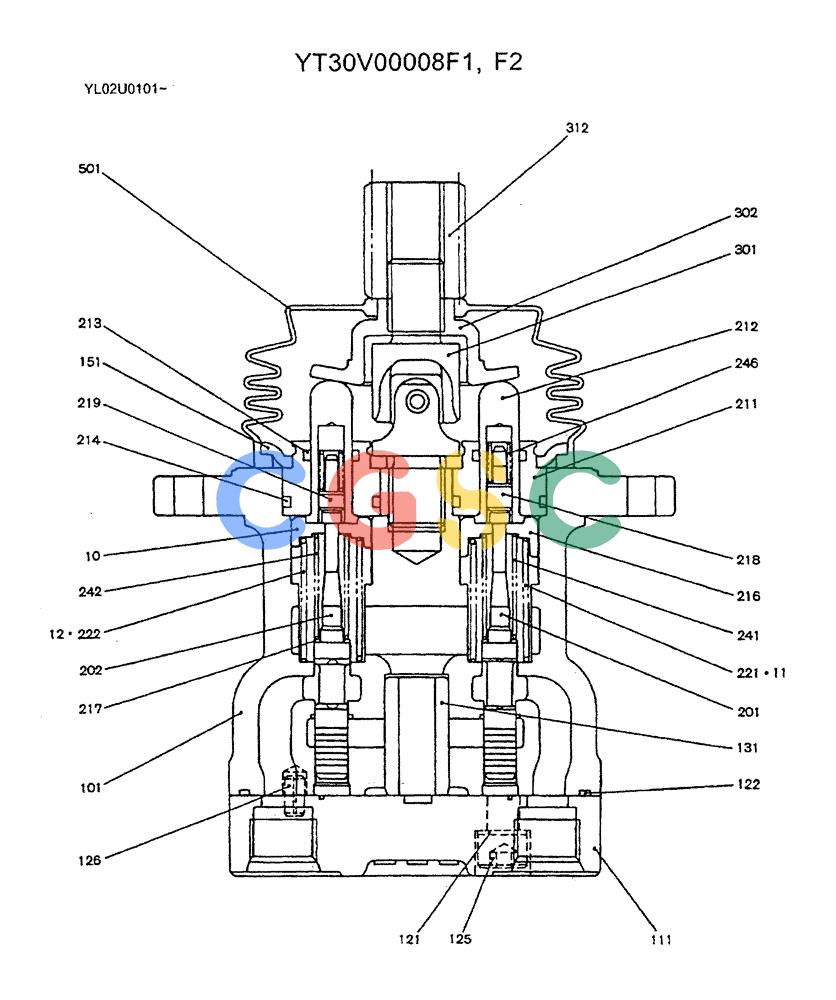

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT30V00008F1 | [1] | PILOT VALVE | KOB Superseded by part number: YY30V00055F1 |
| . . | YT30V00008F2 | [1] | VALVE | KOB Superseded by part number: YY30V00055F1 |
| 10. | YT30V00008S10 | [2] | SEAT | KOB Superseded by part number: YT30V00008S010 |
| 11. | YT30V00008S011 | [2] | SPRING | KOB |
| 12. | YT30V00008S012 | [2] | SPRING | KOB |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONCASE |
| 111. | YT30V00008S111 | [1] | PLATE | KOB |
| 121. | 2436U1277S121 | [2] | WASHER | KOB |
| 122. | YT30V00008S122 | [1] | O-RING | KOB |
| 125. | YT30V00008S125 | [2] | CAPSCREW | KOBSCREW |
| 126. | ZP26D05010 | [1] | PIN | KOBRoll -- OD 05 x 10mm Long |
| 131. | YT30V00008S131 | [1] | BUSHING | KOB |
| 151. | YT30V00008S151 | [1] | PLATE | KOB |
| 201. | NSS | [2] | NOT SOLD SEPARAT | CONSPOOL |
| 202. | NSS | [2] | NOT SOLD SEPARAT | CONSPOOL |
| 211. | 2436U1277S211 | [4] | PLUG | KOB |
| 212. | 2436U1277S212 | [4] | ROD | KOB |
| 213. | 2436U945S213 | [4] | GASKET | KOB Superseded by part number: 2436U1277S213 |
| 214. | ZD12P02000 | [4] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 216. | YT30V00008S216 | [2] | SEAT | KOB |
| 217. | 2436U1277S217 | [4] | WASHER | KOB |
| 218. | YT30V00008S218 | [2] | SEAT | KOB |
| 219. | YT30V00008S219 | [2] | SEAT | KOB |
| 221. | YT30V00008S221 | [2] | SPRING | KOB |
| 222. | YT30V00008S222 | [2] | SPRING | KOB |
| 241. | YT30V00008S241 | [2] | SPRING | KOB |
| 242. | YT30V00008S242 | [2] | SPRING | KOB |
| 246. | 2436U1277S246 | [4] | SPRING | KOB |
| 301. | 2436U2581S301 | [1] | FLEXIBLE JOINT | KOB |
| 302. | YT30V00008S302 | [1] | PLATE | KOB |
| 312. | YT30V00008S312 | [1] | NUT | KOB |
| 501. | YT30V00008S501 | [1] | BOOT | KOB |
| . . | YT30V00008R100 | [1] | REPAIR KIT | KOB |
