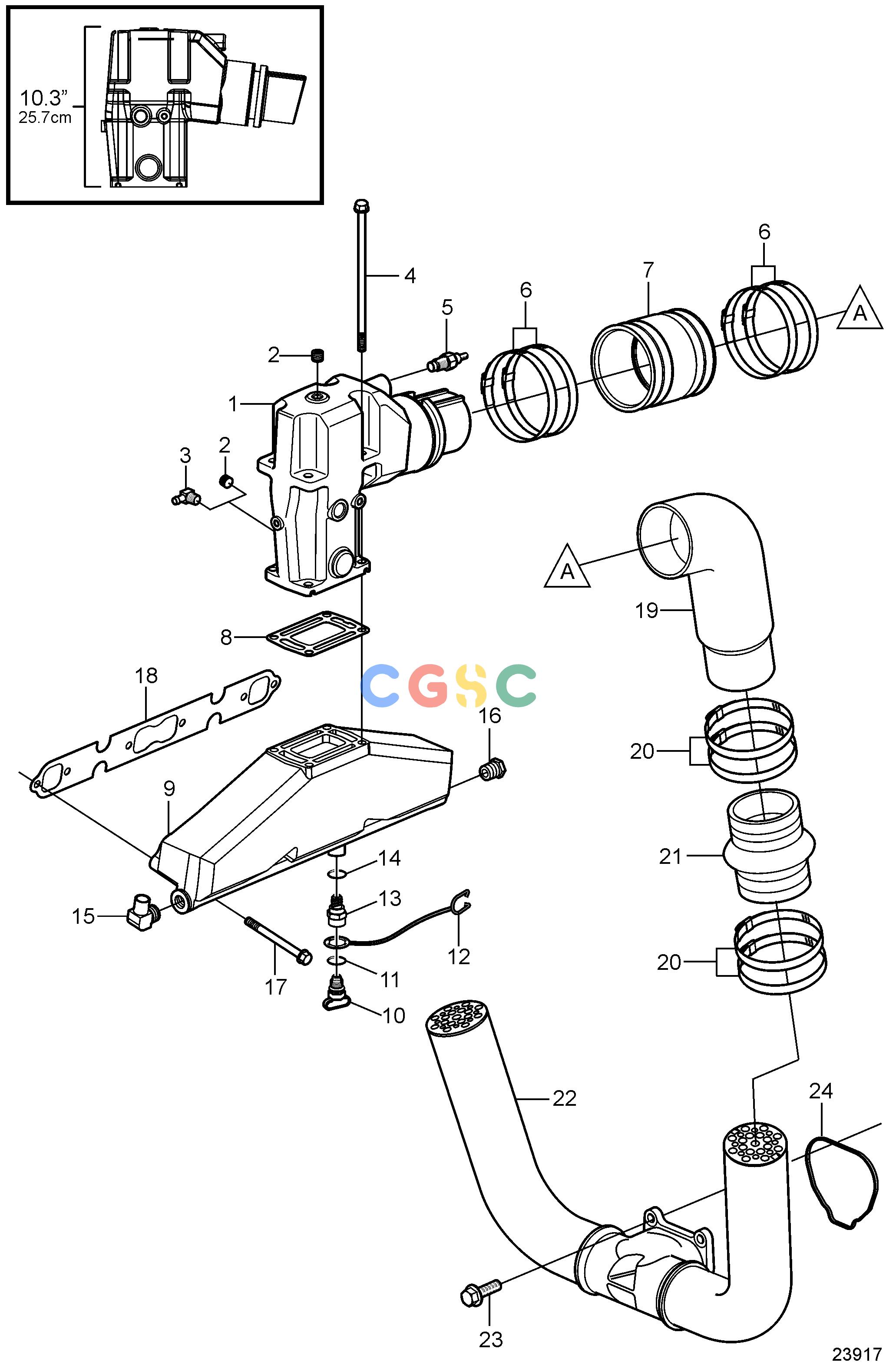

沃尔沃零件查询5.0GXi-270-RIntake and Exhaust SystemExhaustEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
993 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3889965
|
[2] |
Manifold
|
|
| 2. |
3850740
|
[3] |
Plug
|
|
| 3. |
3853597
|
[1] |
Elbow
|
|
| 4. |
3808361
|
[8] |
Flange screw
|
|
| 5. |
3862500
|
[2] |
Temperature sensor
|
|
| 6. |
3863443
|
[8] |
Hose clamp
|
|
| 7. |
3852696
|
[2] |
Hose
|
|
| 8. |
3863191
|
[1] |
Kit
|
|
| 8. |
|
|
|
Not sold separately
|
| 9. |
3847501
|
[2] |
Manifold
|
|
| 10. |
21114522
|
[2] |
Drain plug
|
|
| 10. |
3849500
|
[1] |
Plug
|
Replaced by 21114522, Not sold separately
|
| 11. |
976970
|
[1] |
O-ring
|
|
| 12. |
3849892
|
[1] |
Retainer
|
|
| 13. |
21238201
|
[2] |
Adapter
|
|
| 14. |
976970
|
[2] |
O-ring
|
|
| 15. |
3852538
|
[2] |
Elbow
|
|
| 16. |
3595388
|
[2] |
Plug
|
|
| 17. |
3857184
|
[12] |
Flange screw
|
|
| 18. |
3852468
|
[2] |
Gasket
|
|
| 19. |
3863189
|
[2] |
Elbow
|
|
| 20. |
3863442
|
[8] |
Hose clamp
|
|
| 21. |
3863450
|
[2] |
Bellows
|
|
| 22. |
3847749
|
[1] |
Exhaust pipe
|
|
| 23. |
3841928
|
[4] |
Flange screw
|
|
| 24. |
3841013
|
[1] |
Gasket
|
|
