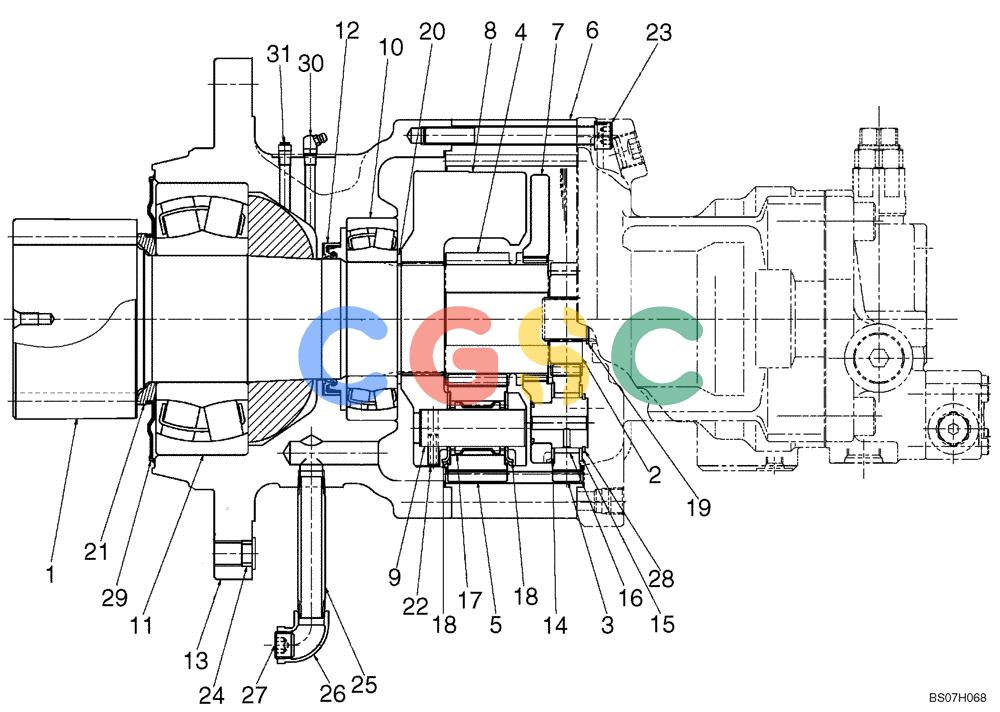

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (07-002[00]) - REDUCTION ASSY (SWING) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
857 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN32W01051P1 | [1] | SHAFT | SM |
| 2. | YN32W01052P1 | [1] | GEAR | SM |
| 3. | YN32W01117P1 | [3] | GEAR | SMPinton |
| 4. | YN32W01054P1 | [1] | GEAR | SM |
| 5. | YN32W01055P1 | [4] | GEAR | SM |
| 6. | YN32W01056P1 | [1] | RING GEAR | SM |
| 7. | YN32W01123F1 | [1] | SPIDER | KOBSpider, Inludes, Refs. 7-1 & 7-2 |
| 7-1. | NSS | [1] | NOT SERVICED SEPARATELY | CONSpider |
| 8. | YN32W01058P1 | [1] | CARRIER,Housing, Spider | SM |
| 9. | YN32W01067P1 | [4] | SHAFT | SM |
| 10. | YN32W01030P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: 25Z804D18 |
| 11. | YN32W01029P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: R25P0047D9 |
| 12. | YN32W01060P1 | [1] | OIL SEAL | SM |
| 13. | YN32W01104P1 | [1] | BOX | SM Superseded by part number: YN32W00022F2 |
| 14. | YN32W01026P1 | [3] | THRUST WASHER | KOB |
| 15. | YN32W01028P1 | [3] | THRUST WASHER | KOB |
| 16. | YN32W01022P1 | [102] | ROLLER | KOB |
| 17. | YN32W01072P1 | [4] | NEEDLE BEARING | SM |
| 18. | YN32W01063P1 | [8] | WASHER | SM |
| 19. | ZR16X03500 | [1] | RING | KOBRetaining -- ID 32.20 x OD 35 x Th 1.6mm |
| 20. | ZR16X09000 | [1] | RING | KOBRetaining -- ID 84.50 x OD 108 x 3.0mm |
| 21. | YN32W01082P1 | [1] | SLEEVE | SM |
| 22. | ZP26D08025 | [4] | PIN | KOBRoll -- OD 08 x 25mm Long |
| 23. | HS23C14135G1 | [11] | SCREW,M14 x 135mm | SMM14x2.0x135mm |
| 24. | PV02B01073DB | [2] | CAP | KOB18.4mm Plastic |
| 25. | YN32W01080D1 | [1] | RIGID TUBE | SM1/2" PT x 112mm Long |
| 26. | ZG31U08000 | [1] | HYD CONNECTOR | SMElbow, 90° -- 1/2" PT |
| 27. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 28. | ZR16X04000 | [3] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 29. | YN32W01081P1 | [1] | OIL SEAL | SM |
| 30. | ZG91V02000 | [1] | LUBE NIPPLE | KOB67° x 1/8" PT |
| 31. | 2444Z3305 | [1] | BREATHER | KOB1/8"PT |
