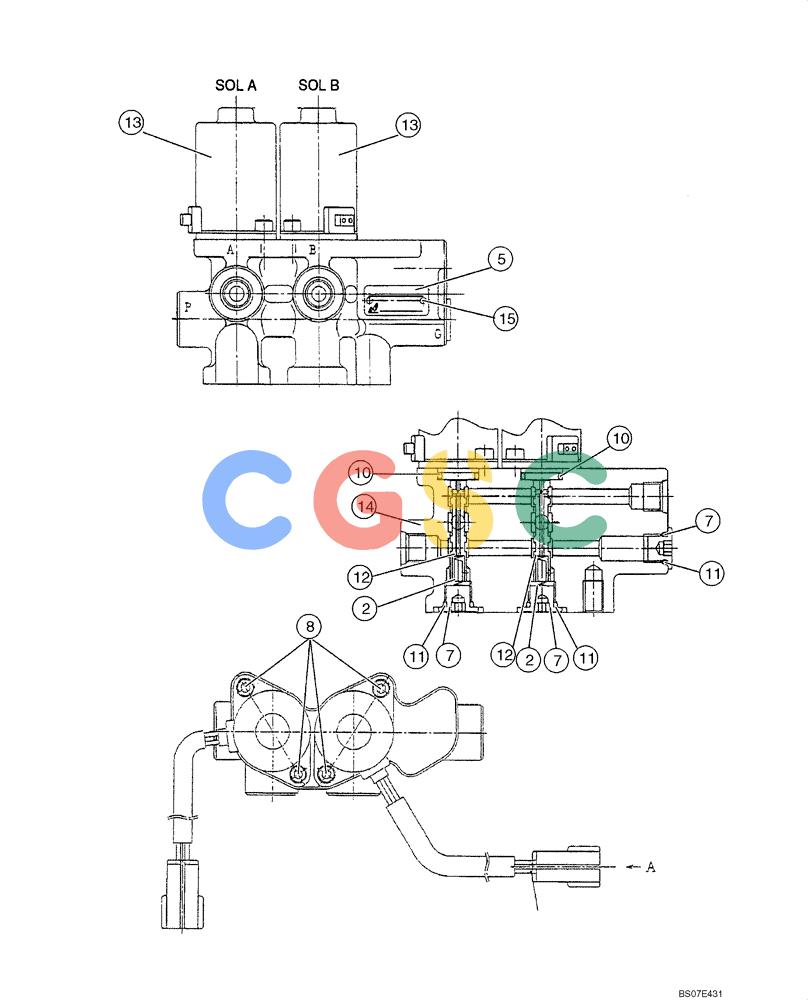

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (07-007[00]) - VALVE ASSY, SOLENOID New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
370 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 2436U2802S3 | [2] | SPRING | KOB |
| 5. | NSS | [1] | NOT SERVICED SEPARATELY | CONName Plate |
| 7. | LC35V00004S007 | [2] | PLUG | KOB1/4" PF |
| 8. | LC35V00004S008 | [4] | SCREW | KOBM05x0.8x10mm |
| 10. | ZD11P01600 | [2] | O-RING | KOBID 15.80 ± 0.20 x OD 20.6mm |
| 11. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 13. | YR35V00009S022 | [2] | SOLENOID VALVE | KOB |
| 15. | YN30V00080S023 | [2] | SCREW | KOB#2x4.8mm |
