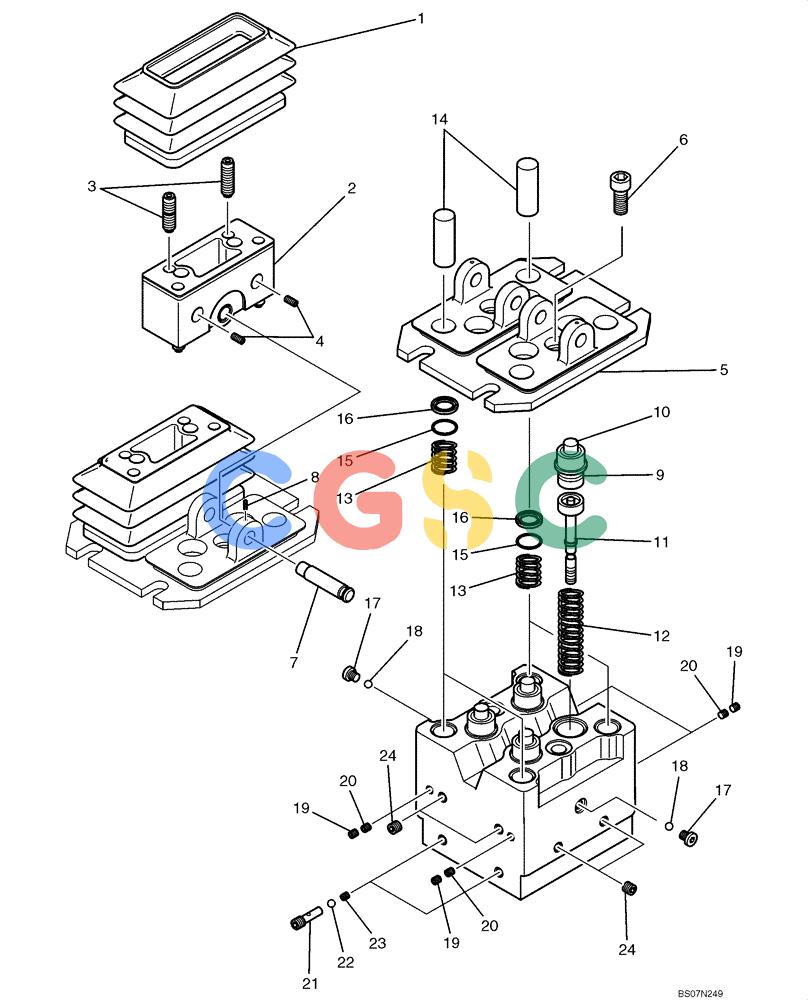

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (07-008[00]) - VALVE ASSY, PILOT (PROPEL) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
678 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YN30V00105F1 | [1] | VALVE | KOBAssembly, Incl 1 - 24 Superseded by part number: YN30V00105F2 |
| 1. | YN30V00105S005 | [2] | COVER | SM |
| 2. | NA | [1] | NOT SERVICED | FORPlate |
| 11. | YN30V00105S010 | [4] | ROD | SMSpool |
| K. | YN30V00105R100 | [1] | KIT | SMRepair; Contains Items, 2x2, 3x8 & 4x4 |
| K. | YN30V00105R110 | [1] | KIT | SMRepair; Contains Items, 5x1, 6x2, 7x2 & 8x2 |
| K. | YN30V00105R120 | [1] | KIT | SMRepair; Contains Items, 9x4 & 10x4 |
| K. | YN30V00105R130 | [1] | KIT | SMRepair; Contains Items, 12x4 |
| K. | YN30V00105R140 | [1] | KIT | SMRepair; Contains Items, 13x4 |
| K. | YN30V00105R150 | [1] | KIT | SMRepair; Contains Items, 14x4, 15x4 & 16x4 |
| K. | YN30V00105R160 | [1] | KIT | SMRepair; Contains Items, 17x2 & 18x2 |
| K. | YN30V00105R170 | [1] | KIT | SMRepair; Contains Items, 19x4 & 20x4 |
| K. | YN30V00105R180 | [1] | KIT | SMRepair; Contains Items, 21x3, 22x3 & 23x3 |
