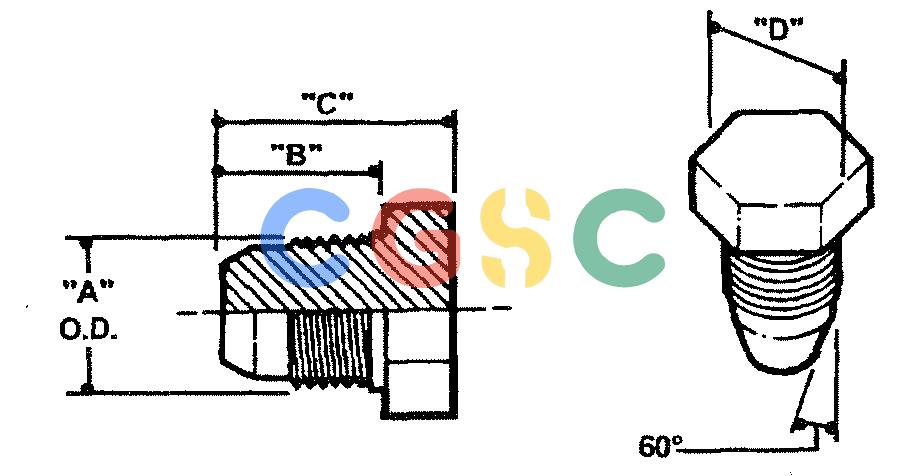

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (00-005) - MALE PF PLUG Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
704 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2444Z2728D1 | [1] | PLUG | KOB1/4"PFx24.5mm Long (No O-Ring supplied) |
| . . | 2444Z2728D2 | [1] | PLUG | KOB3/8"PFx24.5mm Long (No O-Ring supplied) |
| . . | 2444Z2728D3 | [1] | PLUG | KOB1/2"PFx31mm Long (No O-Ring supplied) |
| . . | 2444Z2728D4 | [1] | PLUG | KOB3/4"PFx34mm Long (No O-Ring supplied) |
| . . | 2444Z2728D5 | [1] | PLUG | KOB1"PFx36mm Long (No O-Ring supplied) |
