纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (07-017[00]) - PUMP ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
337 次

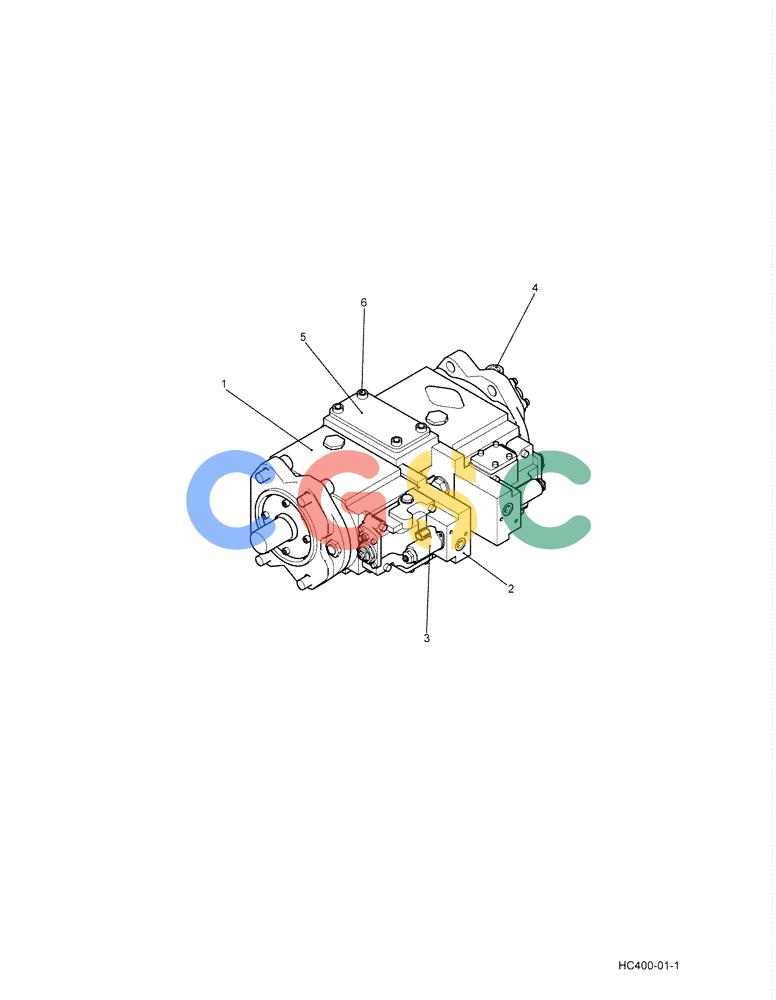

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN10V00036F2 | [1] | HYDRAULIC PUMP | KOBAssembly, Start Serial: 0 Superseded by part number: YN10V00036F4 |
| 1. | YN10V00043F1 | [1] | HYDRAULIC PUMP | SMAssembly |
| 2. | YN10V01009F2 | [2] | SPEED GOVERNOR | KOBREGULATOR ASSY Superseded by part number: YN10V01009F4 |
| 3. | YN35V00052F2 | [2] | SOLENOID VALVE | KOBASSY, SOLENOID Superseded by part number: YN35V00054F1 |
| 4. | YN10V00014F3 | [1] | PUMP | KOBASSY, GEAR |
| 5. | YN10V00023S009 | [1] | GUARD | KOB |
| 6. | ZS23C10020 | [4] | SCREW,Hex Socket Head, M10 x 20mm | KOBM10x1.50x20mm |
