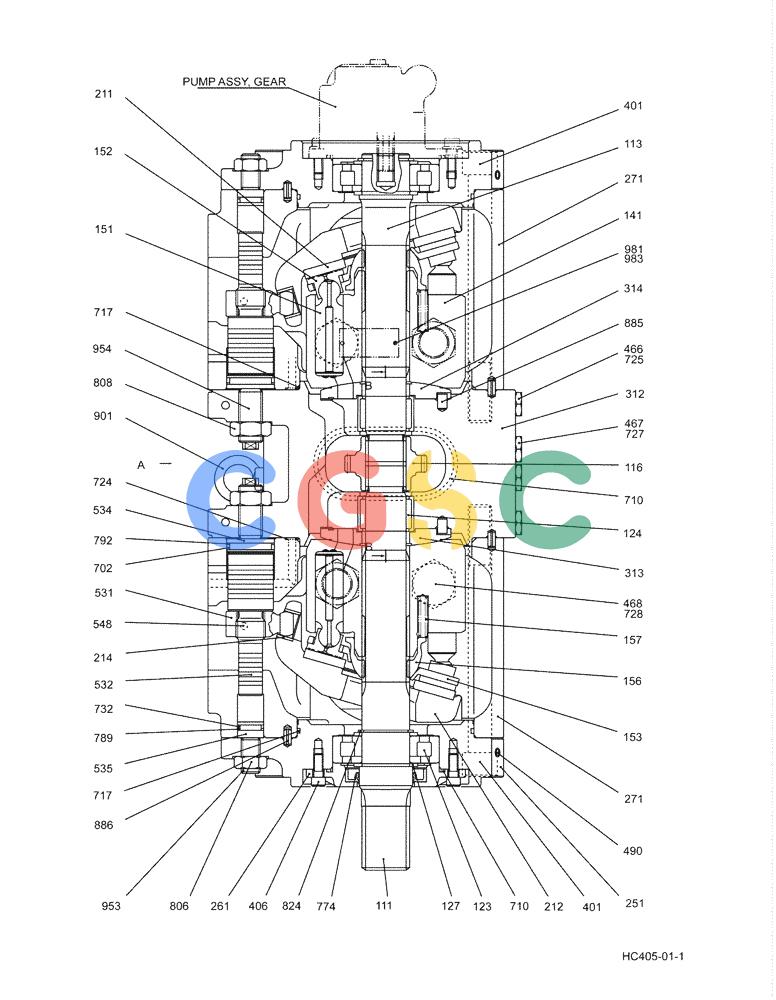

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (07-018[00]) - PUMP ASSY YN10V00043F1 (HC405) PAGE 1 OF 2 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
555 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN10V00043F1 | [1] | HYDRAULIC PUMP | SMPUMP ASSY |
| 111. | YN10V00043S111 | [1] | SHAFT | SM |
| 113. | YN10V00013S113 | [1] | SHAFT | KOB |
| 116. | YN10V00020S116 | [1] | GEAR | KOB |
| 123. | LC10V00002S123 | [2] | BEARING | KOB |
| 124. | YN10V00011S124 | [2] | NEEDLE BEARING | KOB |
| 127. | 2441U723S127 | [4] | SPACER | KOB |
| 141. | NSS | [2] | NOT SERVICED SEPARATELY | CONBLOCK,CYLINDER |
| 153. | 2437U213S153 | [2] | PLATE | KOB Superseded by part number: LC10V00010S153 |
| 156. | YN10V00005S156 | [2] | BUSHING | KOB |
| 157. | 2437U213S157 | [18] | SPRING | KOB |
| 211. | 2441U242S211 | [2] | PLATE | KOB |
| 251. | 2437U213S251 | [2] | PLATE | KOB |
| 261. | 2437U420S261 | [1] | COVER | KOB |
| 271. | YN10V00043S271 | [2] | BOX | SMCASE |
| 312. | LC10V00010S312 | [1] | BLOCK | SMVALVE |
| 325. | YN10V00043S325 | [1] | COVER | SM |
| 401. | 2437U213S401 | [8] | SCREW | KOB |
| 406. | ZS23C08020 | [4] | SCREW,Hex Socket Head, M8 x 20mm | KOBM08x1.25x20mm |
| 407. | ZS23C06055 | [3] | CAPSCREW,Hex Socket Head, M6 x 55mm | KOBSCREW M06x1.0x55mm |
| 466. | 2441U667S466 | [2] | PLUG | KOB1/4" PF |
| 467. | 2441U549S464 | [2] | PLUG | KOB |
| 468. | 2441U436S469 | [4] | PLUG | KOB |
| 490. | 2441U722S490 | [32] | PLUG | KOB1/16" NPTF |
| 532. | 2437U213S532 | [2] | PISTON | KOB |
| 534. | 2437U213S534 | [2] | STOP | KOB |
| 535. | 2437U213S535 | [2] | STOP | KOB |
| 546. | YN10V00043S546 | [2] | SPACER | SM |
| 702. | YN10V00003S702 | [2] | O-RING | KOB |
| 710. | YX10V00003S012 | [2] | O-RING | KOB |
| 717. | YN10V00020S012 | [4] | O-RING,3.1mm Thk x 144.4mm ID, 70 Duro | KOBO-RING |
| 724. | YX10V00003S015 | [16] | O-RING,1.9mm Thk x 8.8mm ID, 75 Duro | KOB |
| 725. | YT10V00003S710 | [9] | O-RING | KOB |
| 727. | YN10V01001S727 | [3] | O-RING | KOB |
| 728. | YN10V00020S015 | [4] | O-RING | KOBO-RING |
| 732. | YT10V00003S708 | [2] | O-RING | KOB |
| 774. | YN10V00032S775 | [1] | OIL SEAL | KOB Superseded by part number: EG10V00004S774 |
| 789. | ZD85P01800 | [2] | RING | KOBBack-Up -- ID 18 x OD 22 x Th 1.25mm |
| 792. | ZD85G03500 | [2] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 806. | ZN18C16010 | [2] | NUT | KOBM16x2.0mm |
| 808. | ZN18C20012 | [2] | NUT | KOBM20x2.5mm |
| 824. | ZR16X04000 | [2] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 885. | 2441U723S885 | [2] | PIN | KOB |
| 886. | ZP26D06014 | [4] | PIN | KOBRoll -- OD 06 x 14mm Long |
| 901. | ZS91C01000 | [2] | BOLT | KOBEye -- M10x1.50x18mm |
| 953. | 2437U188S953 | [2] | CAP,M10 x 20mm | KOB |
| 954. | 2437U213S954 | [2] | SCREW | KOB |
| 983. | 2437U407S983 | [2] | RIVET | KOBPIN |
| K. | YN10V00003S011 | [1] | PISTON ASSY | KOBCONSISTS OF ITEM, 151X9, 152X9 |
| K. | YN10V00043R100 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF ITEM, 141X1, 313X1 |
| K. | YN10V00043R200 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF ITEM, 141X1, 314X1 |
| K. | 2437U213S30 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM, 212X1, 214X1 |
| K. | 2437U213S530 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM, 531X1, 548X1 |
