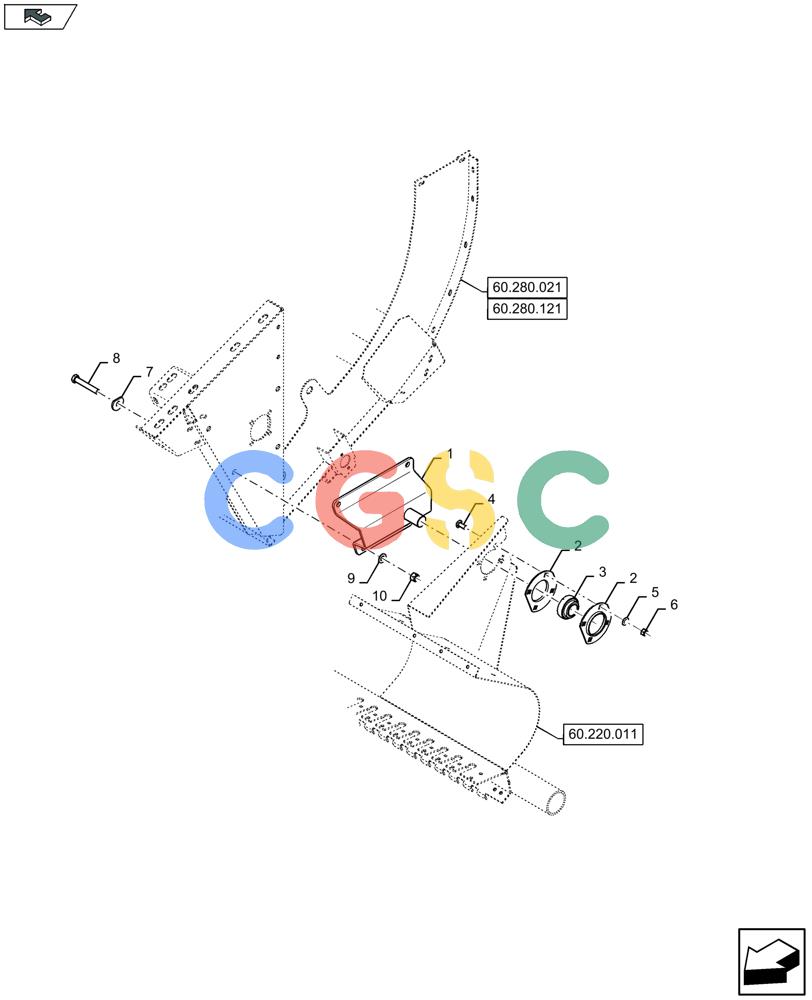

凯斯零件查询(LB334S) - BALER (9/12-) (60.220.171) - PICK-UP, MAIN TRANSMISSION, LH - D151 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
755 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47966465
|
[1] |
SPINDLE
|
ZED
|
| 2. |
86620027
|
[2] |
FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk
|
NH
|
| 3. |
84240146
|
[1] |
BEARING,40mm ID x 80mm OD x 21mm W
|
PLO
|
| 4. |
120044
|
[4] |
CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 5. |
140046
|
[4] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 6. |
100038
|
[4] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 7. |
333041
|
[4] |
WASHER,16.5mm ID x 49mm OD x 6mm Thk
|
ZED
|
| 8. |
374889
|
[4] |
BOLT,Hex, M16 x 100mm, Cl 8.8
|
NH
|
| 9. |
140048
|
[4] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 10. |
86000441
|
[4] |
NUT,M16 x 2.0, Cl 8
|
NH
|
