纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-003[00]) - ENGINE OIL SUMP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
980 次

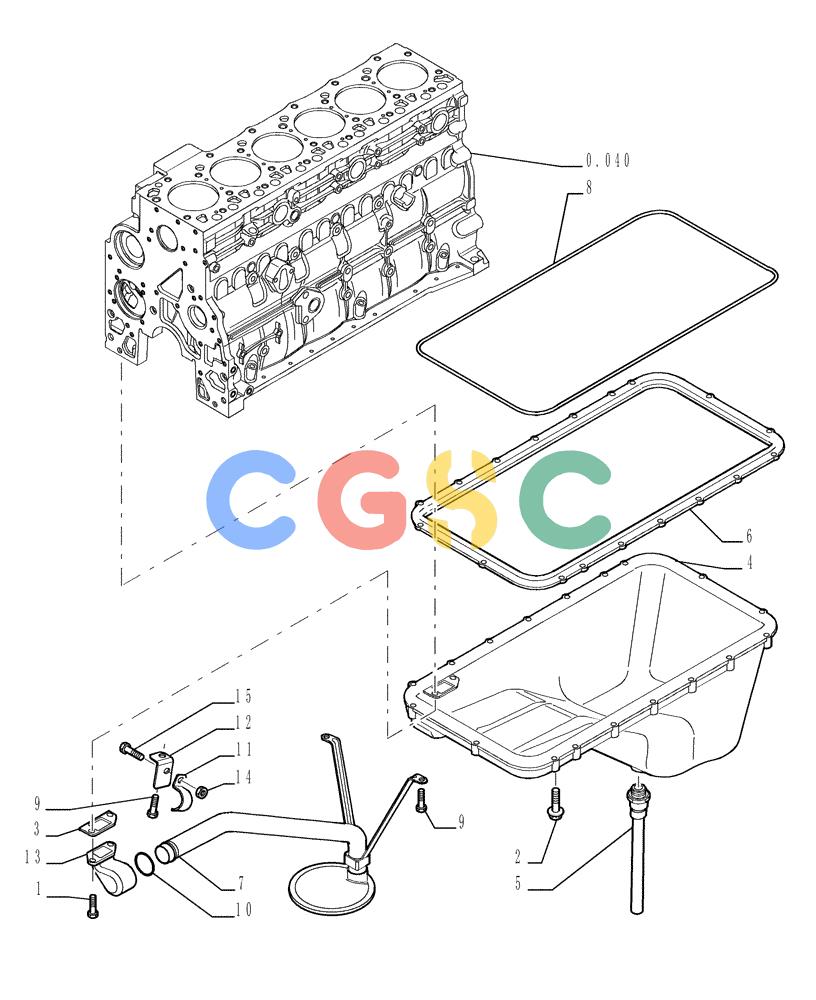

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504003975 | [2] | SCREW | ZEDM08x1.25x20mm Superseded by part number: 16690577 |
| 2. | 4899091 | [18] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BASM08x1.25x40mm |
| 3. | 4898301 | [1] | GASKET,0.42mm Thk | TOR |
| 4. | 2852308 | [1] | ENGINE OIL PAN | TOR |
| 5. | 4894139 | [1] | PLUG,Hex Soc, M22 x 1.5 | TORDrain Plug |
| 5. | 2853894 | [1] | DRAIN PLUG | TORQuick Drain Plug Superseded by part number: 504068028 |
| 5. | 2853363 | [1] | DRAIN | TORQuick Drain Hose Kit (Incl 2852666 & 2853364) Superseded by part number: 504040826 |
| 5. | 2853364 | [1] | TUBE | SMQuick Drain Tube with Fitting |
| 6. | 4897858 | [1] | SPACER | TOR |
| 7. | 2852654 | [1] | SUCTION PIPE | TOR |
| 8. | 4897861 | [1] | OIL PAN GASKET SET,17.3mm Thk | TOR |
| 9. | 4895291 | [3] | SCREW,Hex Flg, M10 x 1.5 x 20 | TORM10x1.50x20mm |
| 10. | 70925934 | [1] | O-RING,0.139" Thk x 1.359" ID, -220, Cl 8, 90 Duro | CMI |
| 11. | 2852663 | [1] | CLAMP | TOR Superseded by part number: 504047521 |
| 12. | 2852664 | [1] | BRACKET | TORBRACKET Superseded by part number: 504084873 |
| 13. | 2856428 | [1] | COLLAR CLAMP | TOR Superseded by part number: 504271972 |
| 14. | 4899003 | [1] | FLANGE NUT,M8 x 1.25 | TORM08x1.25mm Superseded by part number: 17044735 |
| 15. | 4899068 | [1] | BOLT,Flng, M8 x 1.25 x 16mm | BASM08x1.25x16mm |
