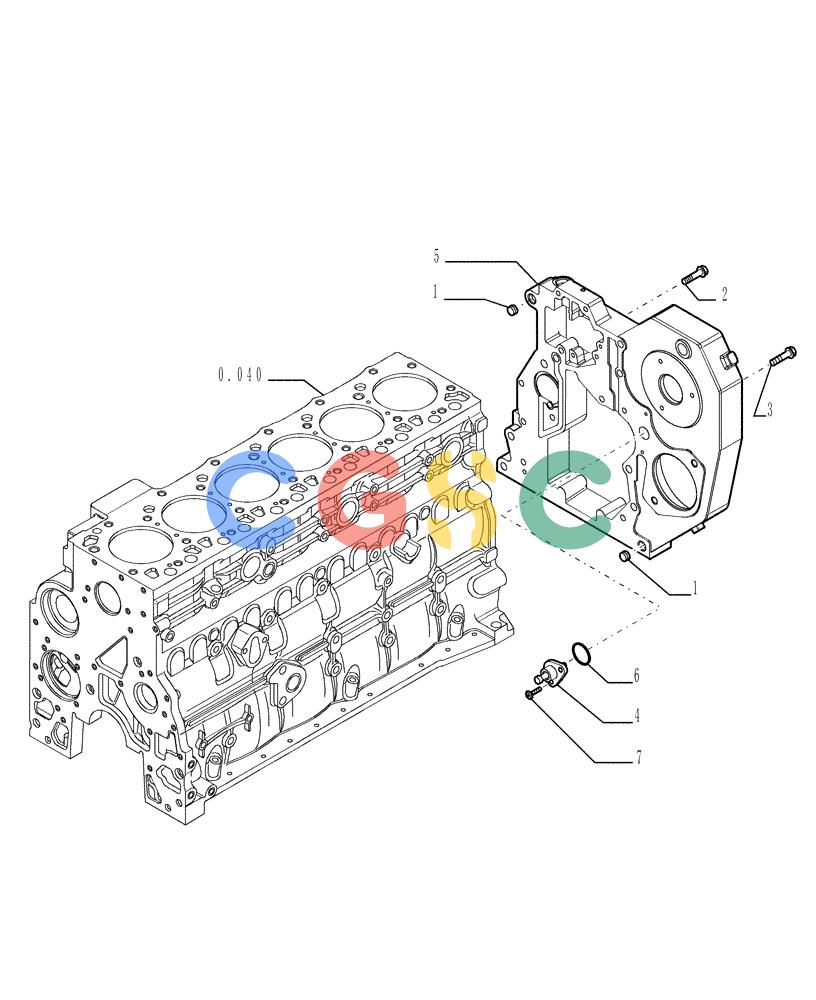

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-004[01]) - CRANKCASE COVERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
816 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899026 | [2] | DOWEL,M18 x 10 | TOR |
| 2. | 4899091 | [4] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BASM08x1.25x40mm |
| 3. | 4899093 | [5] | BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC | BASM10x1.50x30mm |
| 3. | 4899073 | [1] | SCREW,Hex Flg, M12 x 1.75 x 30 | TORM12x1.75x30mm |
| 4. | 2855287 | [1] | HOUSING | TORTIMING PIN |
| 5. | 2852320 | [1] | COVER | TOR Superseded by part number: 504035017 |
| 6. | 17278781 | [1] | O-RING | TOR |
| 7. | 4895355 | [2] | SCREW,M5 x 0.8 x 17mm, Cl 8.8 | TORM05x0.8x17mm |
