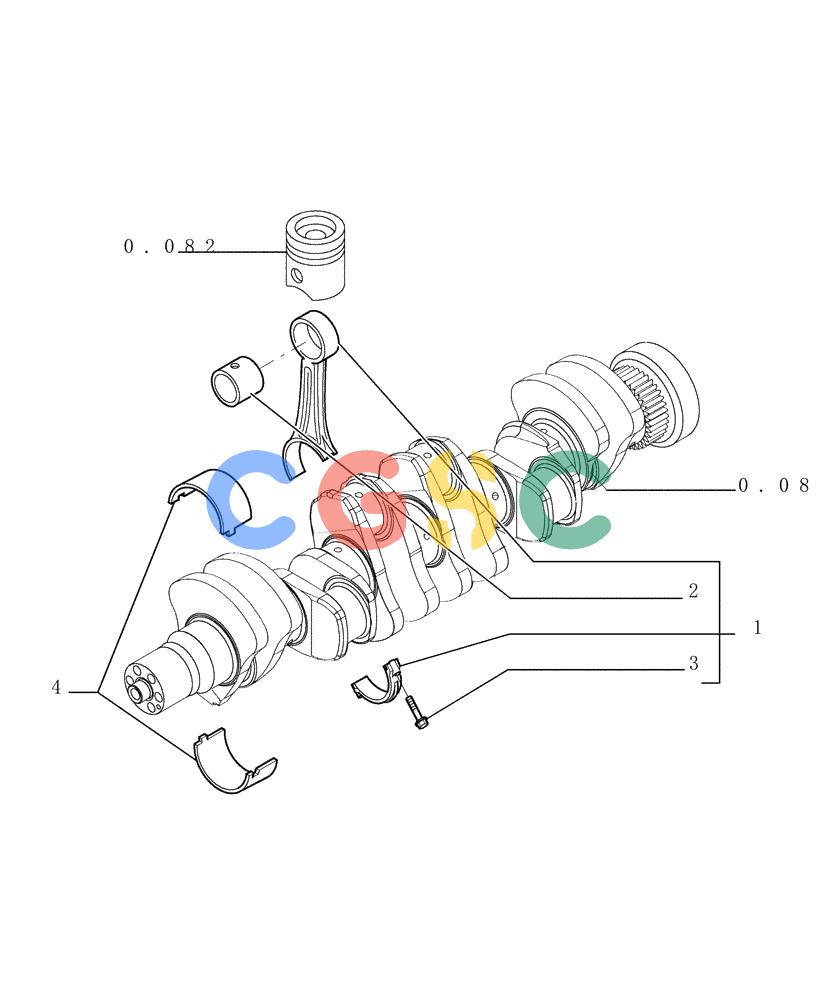

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-012[00]) - CONNECTING ROD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
709 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2831298 | [6] | CONNECTING ROD | TOR- ASSY |
| . . | 2831298R | [6] | REMAN-CONNECTING ROD | TORSK210-8 Tier 3 w/ROPS ASN YQ12U4800 |
| . . | 2831298C | [1] | CORE-ROD CONNECTING | TORReturn Number |
| 2. | 4892708 | [1] | BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L | TOR |
| 3. | 2831297 | [2] | FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9 | TORM10x1.25x52mm |
| 4. | 8093882 | [6] | BEARING SET | TOR |
| 4. | 8094960 | [6] | BEARING SET,(-0.250) | TOR(+0,4) |
| 4. | 8094961 | [6] | BEARING SET,(-0.500) | TOR(+0,6) |
