纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-013[00]) - PISTON - ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
454 次

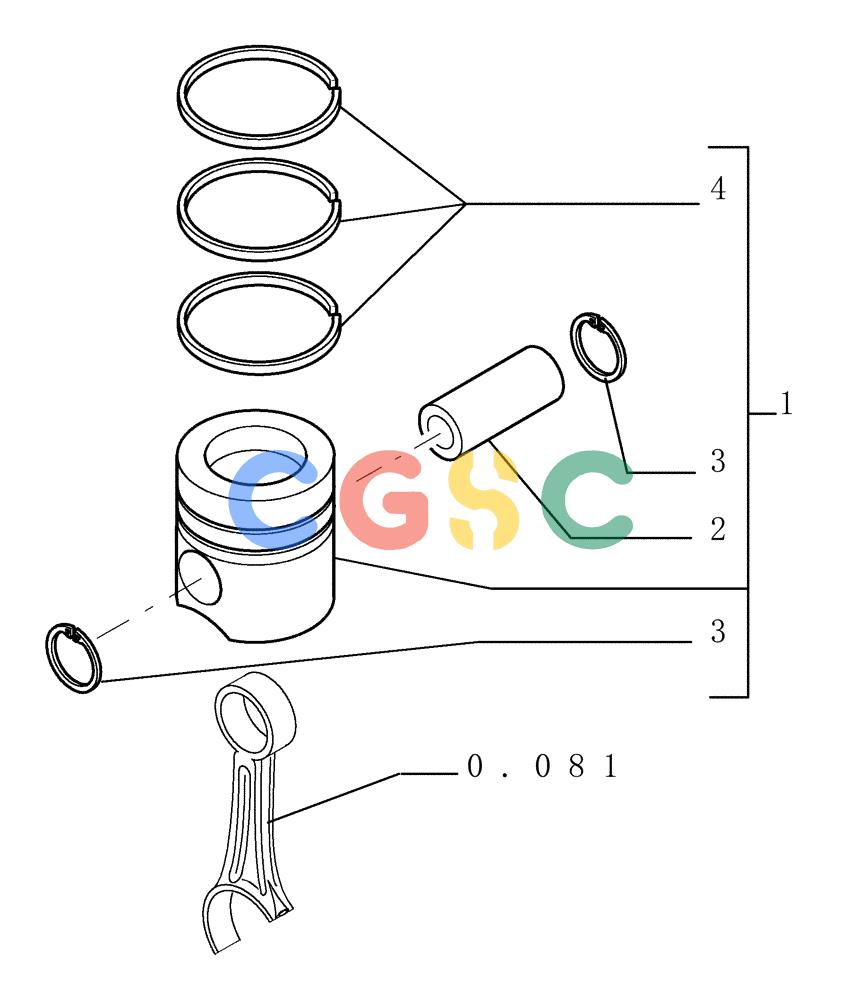

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8094740 | [6] | PISTON & RINGS KIT | TORStandard (Includes Ref 2-4) |
| 1. | 87317252 | [6] | PISTON & RINGS KIT | TOR0.4mm Oversize (Includes Ref 2-4) |
| 2. | 4892712 | [1] | PISTON PIN,38mm OD x 82mm L | TOR |
| 3. | 4892713 | [2] | SNAP RING,Int, M26.4 | TOR |
| 4. | 8094845 | [1] | PISTON RINGS KIT | TORStandard |
| 4. | 87582180 | [1] | PISTON RINGS KIT | TOR0.4mm Oversize Superseded by part number: 87316944 |
