纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-026[00]) - PIPING - ENGINE OIL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
272 次

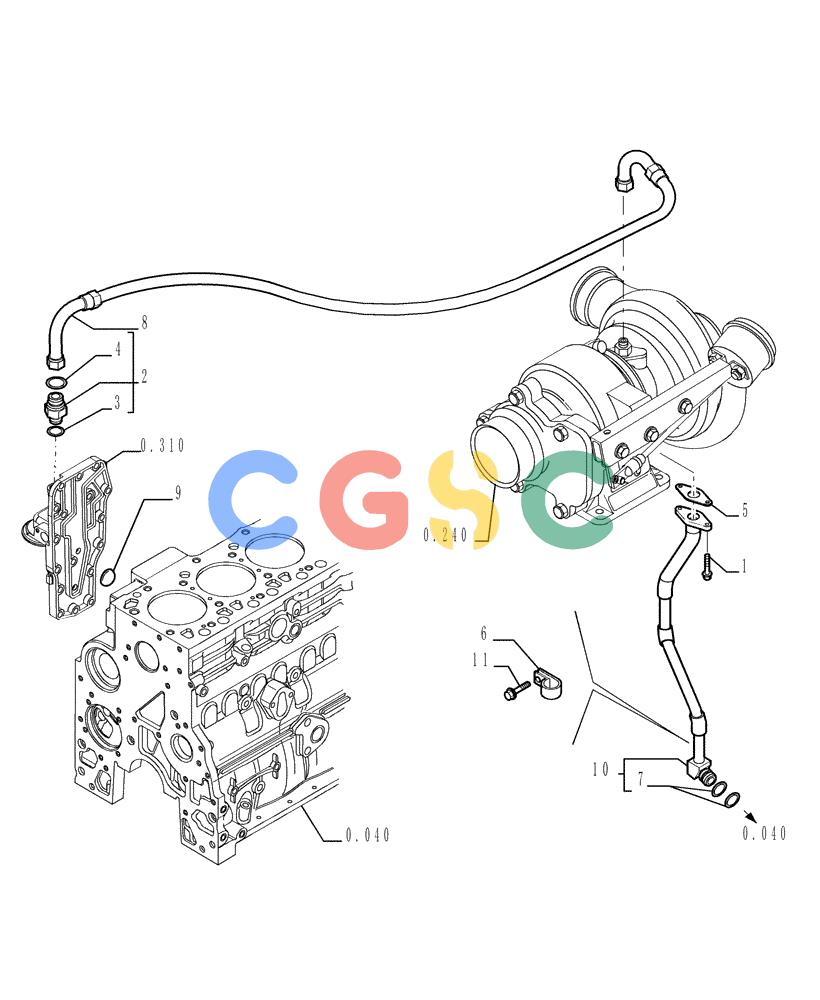

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899079 | [2] | SCREW,Hex Flg, M8 x 1.25 x 25 | TORM08x1.25x25mm |
| 2. | 2857015 | [2] | HYD CONNECTOR | TOR(Incls. O-Rings 4899107 & 4899108) Superseded by part number: |
| 3. | 4899108 | [1] | O-RING,0.364mm ID x 0.07mm Width | TOR Superseded by part number: 17277981 |
| 4. | 4895610 | [1] | O-RING,2.2mm Thk x 9.3mm ID | TOR |
| 5. | 4891288 | [1] | GASKET,0.8mm Thk | TOR |
| 6. | 4899827 | [1] | SUPPORT | SM |
| 7. | 4899058 | [2] | O-RING,0.674" ID x 0.88" OD x 0.103" | TORM17.12 ID x 2.62 Thk Superseded by part number: 17281881 |
| 8. | 2852679 | [1] | HYDRAULIC HOSE | TOR Superseded by part number: 504084095 |
| 9. | 4895089 | [1] | PLUG | TOR |
| 10. | 2852919 | [1] | RIGID TUBE | TOR- ASSY Superseded by part number: 47547974 |
| 11. | 16677735 | [1] | SCREW,M12 x 25mm | TORM12x1.75x25mm |
