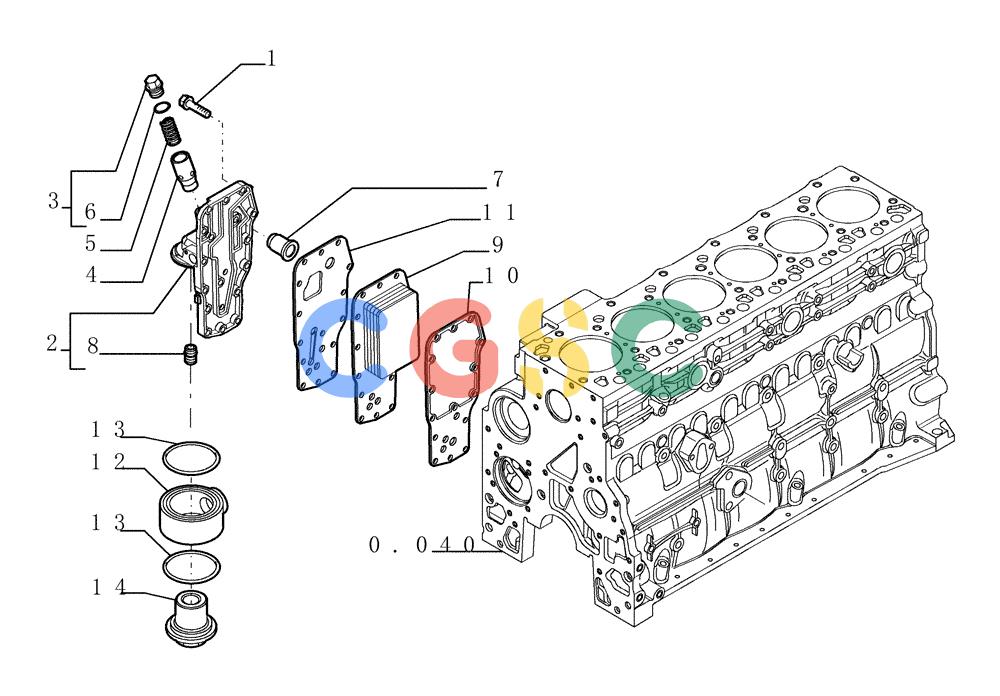

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-027[00]) - HEAT EXCHANGER - ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
619 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899019 | [15] | SCREW,Hex Flg, M8 x 1.25 x 35 | TORM08x1.25x35mm |
| 2. | 4899643 | [1] | FILTER HEAD | TOR |
| 3. | 2853781 | [1] | PLUG | TOR Superseded by part number: 504096409 |
| 4. | 4896404 | [1] | PLUNGER | TOR |
| 5. | 4895045 | [1] | SPRING | TOR |
| 6. | 17916280 | [1] | SEAL | TOR |
| 7. | J936365 | [1] | PRESSURE RELIEF VALVE | CAS Superseded by part number: 4896410 |
| 8. | 4893391 | [1] | ADAPTER,M24 x 2 x M27 x 2 | TOR Superseded by part number: J936365 |
| 9. | 2853604 | [1] | OIL COOLER | TOR |
| 10. | 2830559 | [1] | GASKET,0.5mm Thk | TOR |
| 11. | 4896409 | [1] | GASKET,1.55mm Thk | TOR |
| 12. | 2853436 | [1] | BRACKET | SM Superseded by part number: 500389886 |
| 13. | 76046537 | [2] | SEAL,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro | LEC |
| 14. | 2853438 | [1] | THREADED BUSHING | SM Superseded by part number: 500396330 |
