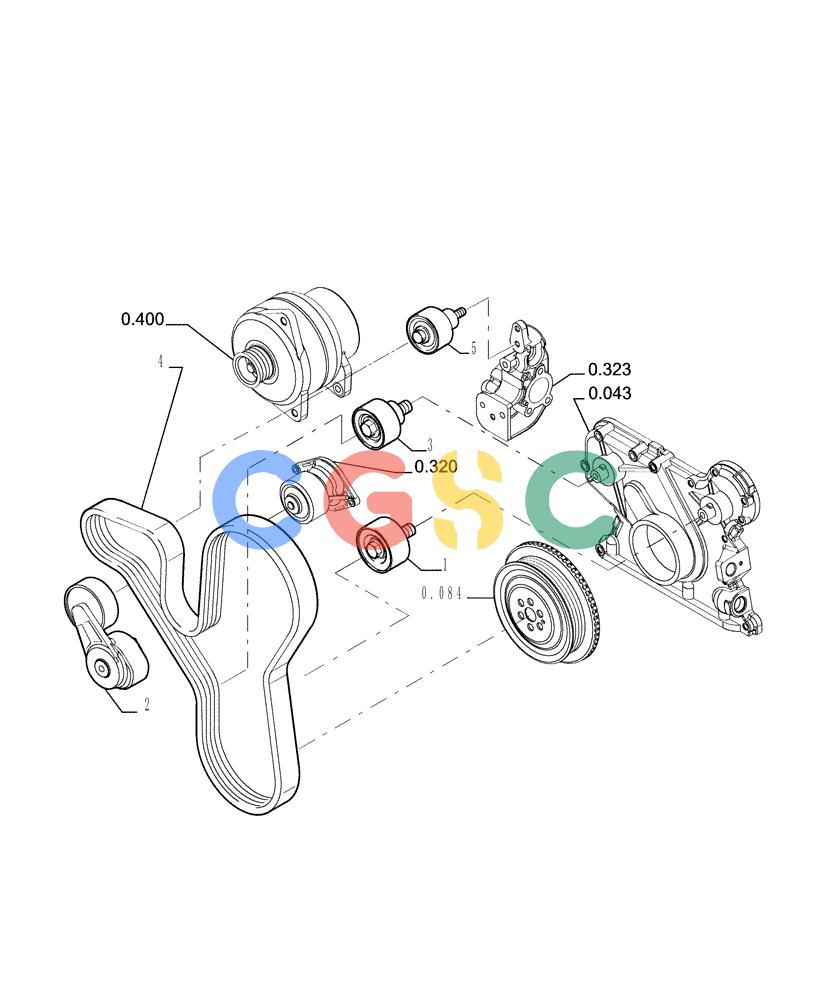

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-031[00]) - WATER PUMP - CONTROL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
926 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852397 | [1] | IDLER,65mm OD | TORØ65x32x40.54mm Includes threads length Superseded by part number: 504065878 |
| 2. | 2856173 | [1] | BELT TENSIONER | TOR Superseded by part number: |
| 3. | 2852398 | [1] | IDLER WHEEL,65mm OD | TORRoller -- Ø65x32x87.5mm Includes threads length Superseded by part number: 504065877 |
| 4. | 2855970 | [1] | BELT,1630.00 mm L | TORV Superseded by part number: J911564 |
| 5. | 2852245 | [1] | PULLEY,65mm OD | TORØ65x32x72.5mm Includes threads length |
