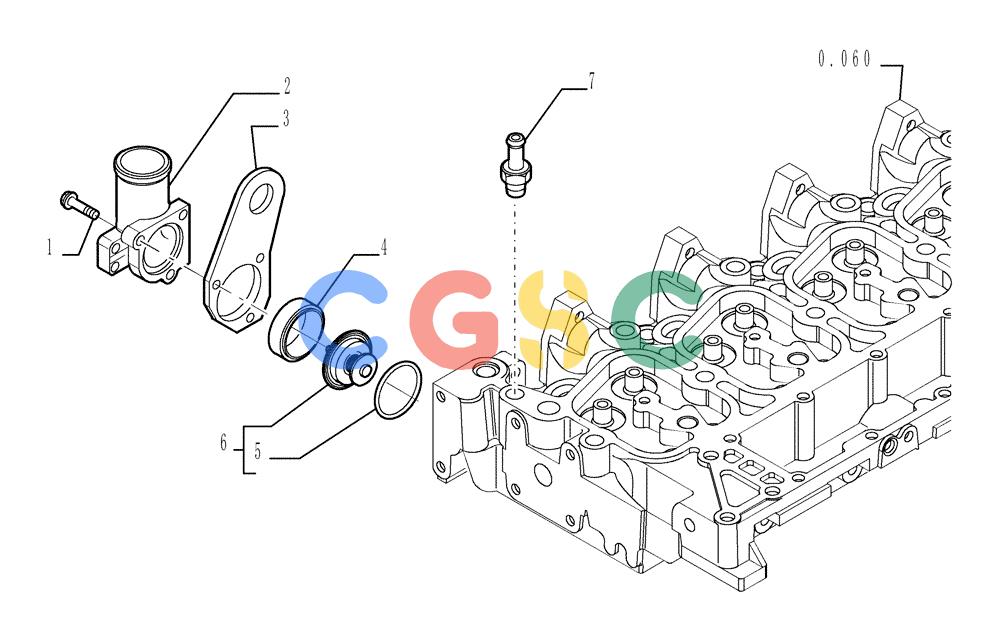

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-030[00]) - THERMOSTAT - ENGINE COOLING SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
204 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899091 | [3] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BASM08x1.25x40mm |
| 2. | 2853131 | [1] | HOUSING | TOR Superseded by part number: 504079269 |
| 3. | 2853445 | [1] | BRACKET | TOR Superseded by part number: 504079607 |
| 4. | 2853133 | [1] | GASKET,51.5mm ID x 61.5mm OD x 16.5mm Thk | TOR Superseded by part number: 504078856 |
| 5. | 2852473 | [1] | GASKET,53.62mm ID x 59.72mm OD x 4.01mm Thk | TOR |
| 6. | 2858050 | [1] | THERMOSTAT | TORIncludes Ref 5 Superseded by part number: 84383461 |
| 7. | 2853761 | [1] | NIPPLE | TOR Superseded by part number: 504043984 |
