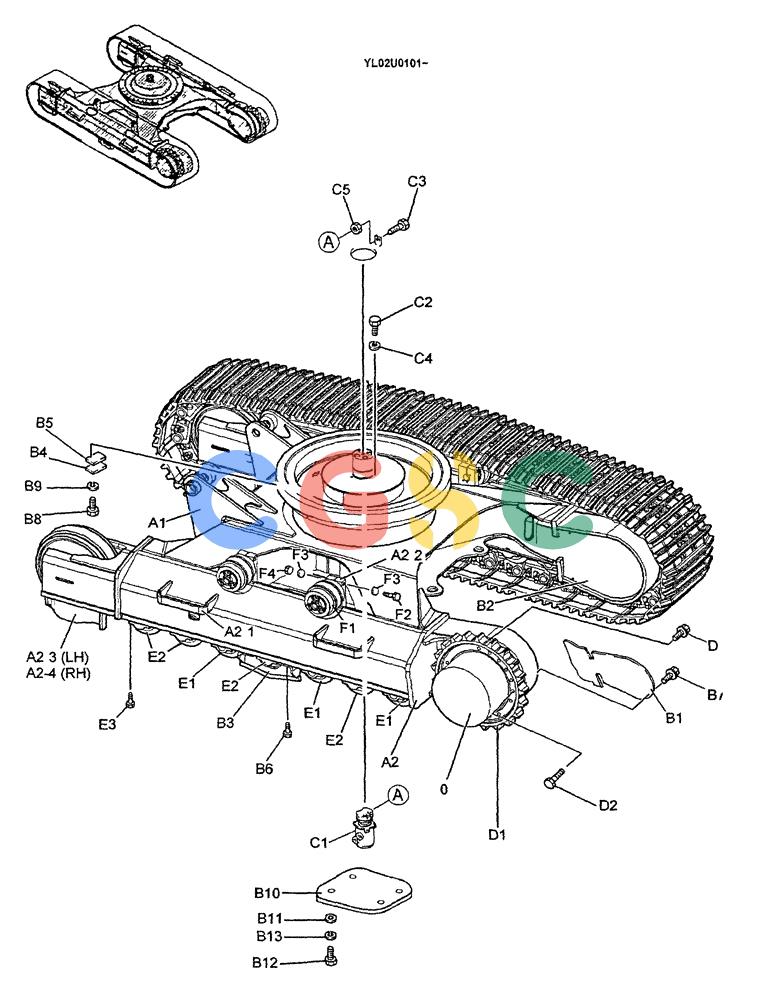

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (02-001) - LOW GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
412 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | 2441U1053F1 | [2] | MOTOR, HYDRAULIC | KOB |
| . . | YM02FU0007P1 | [1] | FRAME ASSY.LOW | |
| A1. | YM02FU1029P1 | [1] | BRACKET | KOB |
| A2. | YM02FU0006P1 | [1] | FRAME ASSY, LOWER | |
| A2-1. | YB41C00001P1 | [2] | STEP | KOB |
| A2-2. | YM07FU1005P1 | [2] | SUPPORT | |
| A2-3. | LQ07FU1001P1 | [2] | GUIDE | KOB |
| A2-4. | LW07FU1002P1 | [2] | GUIDE (RH) | |
| . . | YM01FU0001F1 | [1] | LOW GROUP | |
| B1. | YM01FU1005P1 | [1] | COVER | KOBCOVER(LH) |
| B2. | YM01FU1006P1 | [1] | COVER | KOBCOVER(RH) |
| B3. | YM63DU0001P1 | [2] | GUIDE | KOBGUIDE, TRACK |
| B4. | 2422T556 | [1] | PLATE | KOB90x50x Th 06mm |
| B5. | 2418T12274 | [1] | PACKING | KOB90x50x Th 05mm -- Rubber |
| B6. | LQ01F01035P1 | [8] | BOLT,Flng, M18 x 1.5 x 50mm | KOBM18x1.5x50mm long |
| B7. | 2420T6786 | [10] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| B8. | ZS18C10014 | [2] | SCREW,Hex, M10 x 14mm | KOBM10x1.50x14mm |
| B9. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| B10. | 2414P6258 | [1] | COVER | KOBSize 624x624xTh 0.6mm Corner radius 192mm |
| B11. | ZW11X18000 | [4] | WASHER | KOBID 18 x OD 34 x Th 3.2mm |
| B12. | ZS13C18050 | [4] | SCREW | KOBM18x2.0x50mm |
| B13. | ZW22K18000 | [4] | LOCK WASHER | KOBID 18 x OD 26 x Th 3.5mm |
| . . | YM19HU0001F1 | [1] | JOINT ASSY, SWIVEL | |
| C1. | 24100J20523F2 | [1] | HYDRAULIC SWIVEL | KOB Superseded by part number: 24100J20523F3 |
| C2. | ZS18C12025 | [3] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| C3. | ZS13F20110 | [1] | SCREW | KOBM20x1.50x110mm |
| C4. | ZW16X12000 | [3] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| C5. | ZN13F20016 | [1] | NUT | KOBM20x1.50mm |
| . . | YM53DU0001F1 | [1] | MOTOR INSTAL, PROPEL | |
| D1. | 2404N437 | [2] | SPROCKET,21 teeth | KOB |
| D2. | ZS13C20055 | [40] | SCREW | KOBScrew -- M20x2.50x55mm |
| D3. | YN53D01003P1 | [40] | CAPSCREW | KOBSCREW M20x2.50x60mm |
| . . | YM64DU0002F1 | [1] | ROLLER ASSY, TRACK | |
| E1. | 24100N10083F1 | [6] | TRACK ROLLER | KOB |
| E2. | 24100N10082F1 | [8] | TRACK ROLLER | KOB |
| E3. | ZS23C20070 | [56] | SCREW,Hex Socket Head, M20 x 70mm | KOBM20x2.5x70mm |
| . . | YM64DU0001F1 | [1] | ROLLER ASSY, UPPER | |
| F1. | 24100N10084F1 | [4] | ROLLER | KOB |
| F2. | ZS13C20150 | [4] | SCREW | KOBM20x2.50x150mm |
| F3. | ZW13H20000 | [8] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| F4. | ZN13C20016 | [4] | NUT | KOBM20x2.50mm |
