神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (02-002) - RING ASSY, SLEWING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
276 次

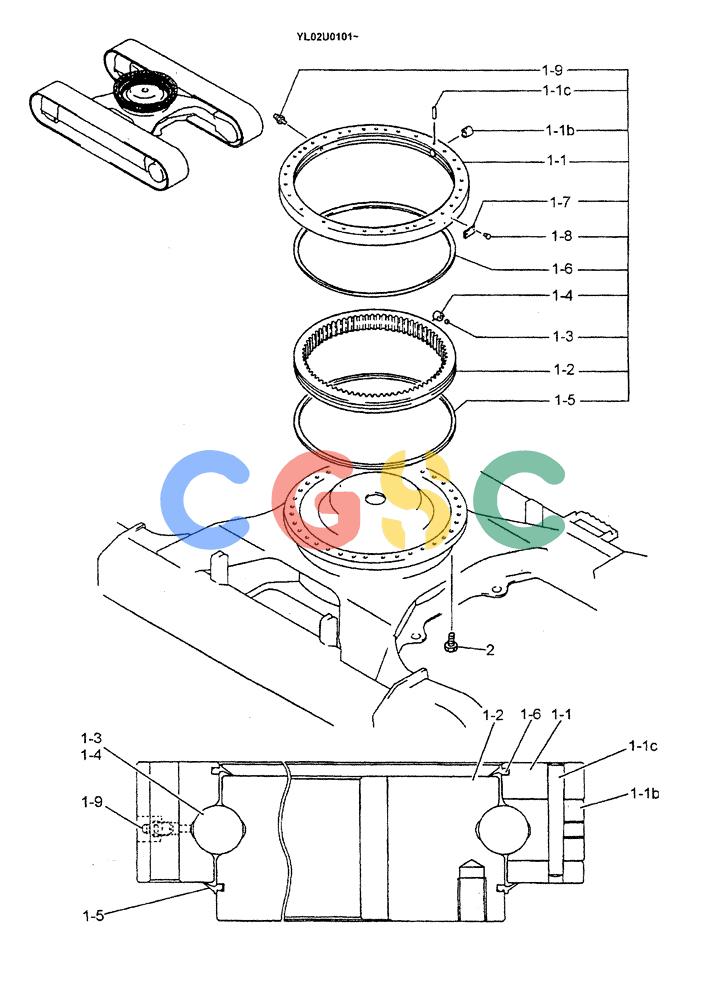

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM40F00002F1 | [1] | RING ASSY, SLEWING | |
| 1. | YM40F00001F1 | [1] | RING | KOB Superseded by part number: YM40F00009F1 |
| 1-1. | YM40F01001P1 | [1] | RACE | KOB |
| 1-1b. | 2420T4508 | [1] | PLUG | KOB |
| 1-1c. | 2419T1964D1 | [1] | PIN | KOBTaper -- OD 10 x 70mm Long |
| 1-2. | 2425N453 | [1] | RACE, INNER(NSS ASSY ONLY) | RACE, INNER(NSS ASSY ONLY) |
| 1-3. | 2425T380 | [87] | BALL | KOB |
| 1-4. | 2425T381 | [87] | RETAINER | KOB |
| 1-5. | 2445P165D10 | [1] | SEAL | KOB Superseded by part number: YN40F01024D4 |
| 1-6. | 2445P165D9 | [1] | SEAL | KOB Superseded by part number: YN40F01024D4 |
| 1-7. | YN22T00191P1 | [1] | PLATE | KOBNAME |
| 1-8. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 1-9. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 2. | YN40F01001P1 | [36] | CAP | KOBScrew -- M20x1.5x65mm |
