神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (02-004) - IDLER ASSEMBLY (24100N10081F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
178 次

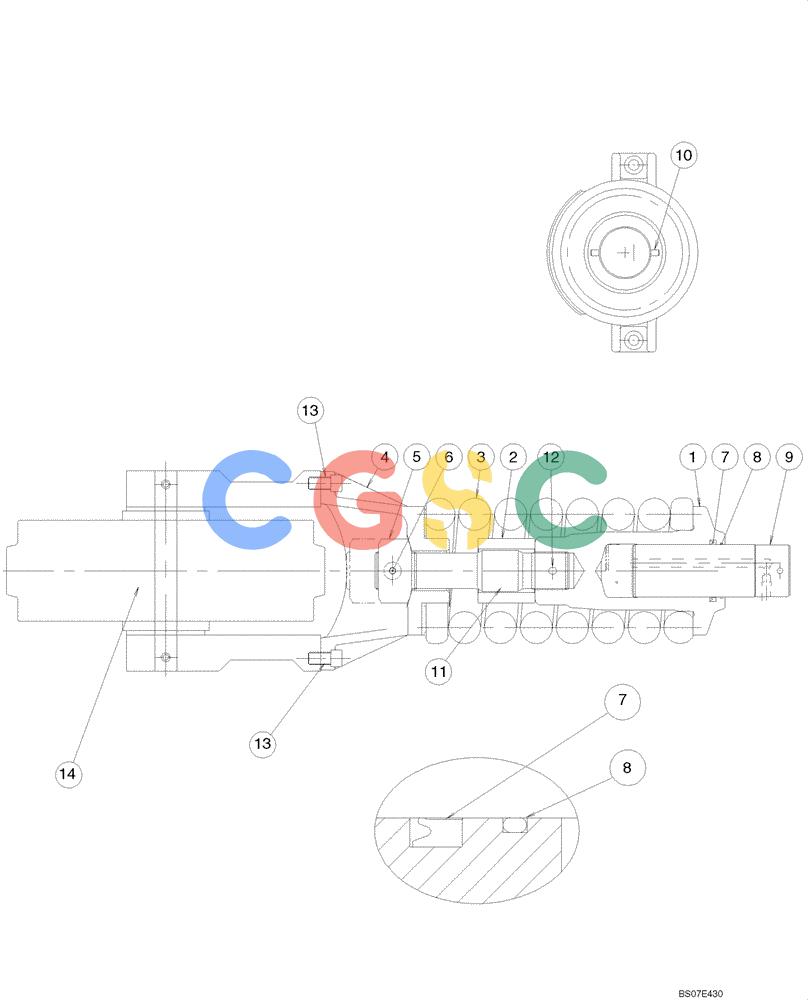

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N10081F1 | [1] | IDLER | KOBIncls. Refs. 1 - 14 |
| 1. | 24100N10081S001 | [1] | CYLINDER | KOBCylinder, Grease |
| 2. | 24100N10081S002 | [1] | COLLAR | KOBCollar |
| 3. | 24100N10081S003 | [1] | SPRING | KOBSpring |
| 4. | 24100N10081S004 | [1] | BRACKET | KOBBracket |
| 5. | 24100N10081S005 | [1] | NUT | KOBNut |
| 6. | 24100N10081S006 | [1] | PIN | KOBPin, Spring |
| 7. | 24100N10081S007 | [1] | OIL SEAL | KOBSeal, Oil |
| 8. | 24100N10081S008 | [1] | O-RING | KOBO-Ring |
| 9. | 24100N10081S009 | [1] | PISTON | KOBPiston |
| 10. | 24100N10081S010 | [1] | PIN | KOBPin |
| 11. | 24100N10081S011 | [1] | SHAFT | KOBShaft |
| 12. | 24100N10081S012 | [1] | PIN | KOBPin, Spring |
| 13. | 24100N10081S013 | [2] | SCREW | KOBCapscrew |
| 14. | 24100N10081S014 | [1] | IDLER WHEEL | KOBWheel, Idler |
