神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (02-005) - ROLLER ASSY, LOWER (DOUBLE FLANGE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
549 次

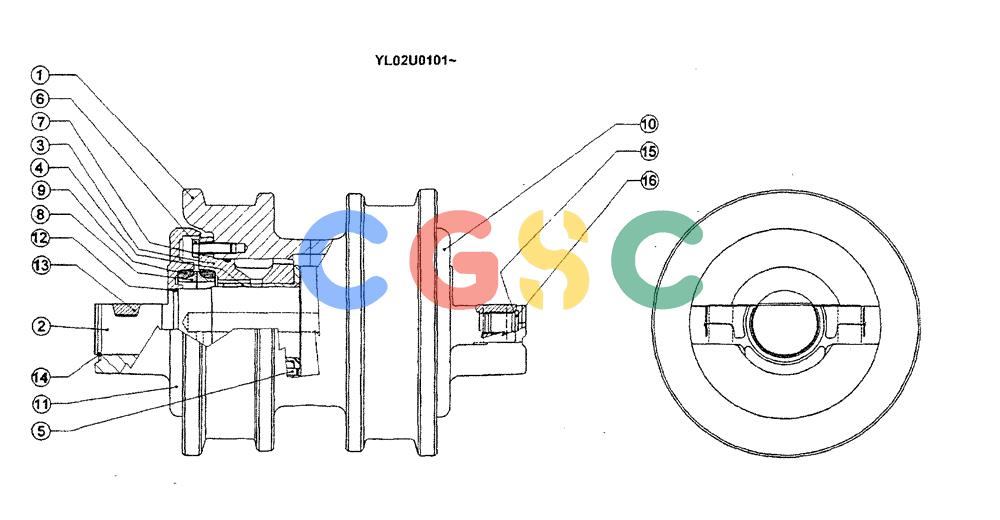

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N10082F1 | [1] | TRACK ROLLER | KOB |
| 1. | B0106200N01 | [1] | ROLLER | |
| 2. | A01062D0N02 | [1] | SHAFT | |
| 3. | A0106300N01 | [2] | CASE, BUSHING | |
| 4. | A0106300N02 | [2] | BUSHING | |
| 5. | A0104300N03 | [2] | PIN | |
| 6. | A0104200N04 | [12] | BOLT,(3/8" 16 unc X 32) | |
| 7. | A0106200N06 | [2] | O-RING,(107.5X3.53) | |
| 8. | A0106100N01 | [4] | RING, SEAL | |
| 9. | A0106100N02 | [4] | O-RING,(75.7 X 9.5) | |
| 10. | A01060D0Y01 | [1] | COLLAR, RH | |
| 11. | A01060D0Y02 | [1] | COLLAR, LH | |
| 12. | A0106000N06 | [2] | O-RING,(54 X 3.53) | |
| 13. | A01060D0N03 | [1] | KEY | |
| 14. | A0106000N05 | [2] | RING, STOPPER | |
| 15. | A0104200N08 | [1] | O-RING,(17.7X1.72) | |
| 16. | A0104200N03 | [1] | PLUG,(3/4" X 16) | |
