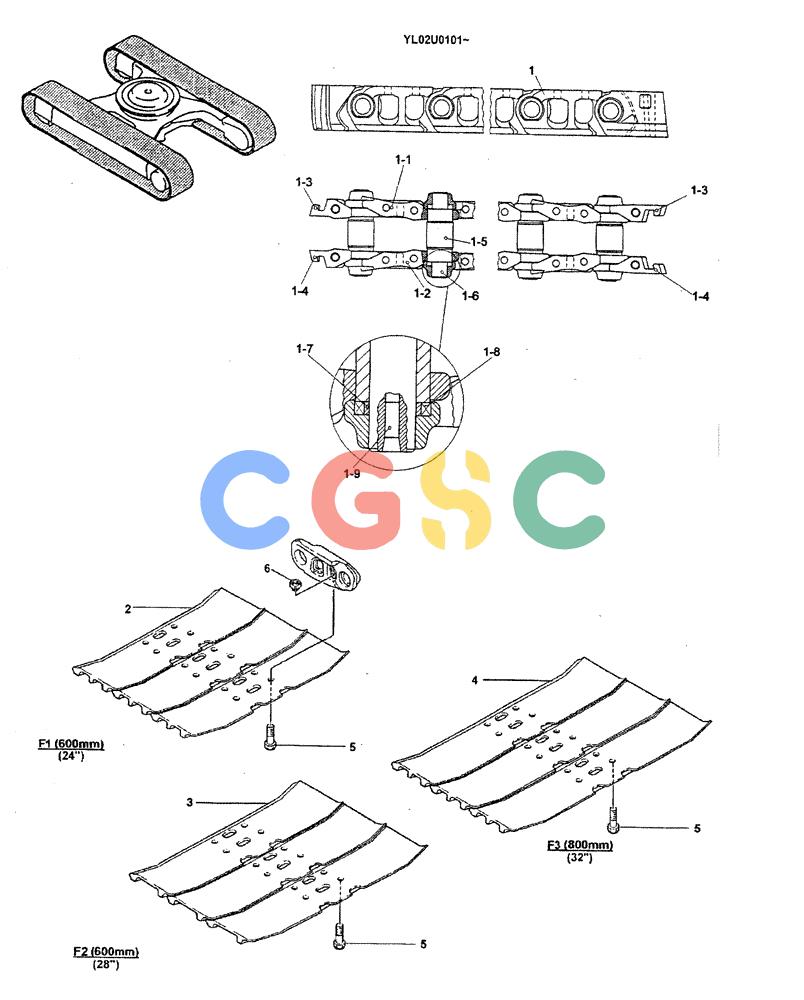

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (02-008) - SHOE ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
194 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J20770F1 | [1] | TRACK LINK INSTAL | TRACK LINK INSTAL |
| . . | 24100J20770F2 | [1] | TRACK ASSY 600M 2 BAR | TRACK ASSY 600M 2 BAR |
| . . | 24100J20770F3 | [1] | TRACK INSTAL, CRAWER(800mm 3-BAR) | |
| 1. | 24100J20769F1 | [2] | CRAWLER TRACK ASSY | KOB |
| 1-1. | 55846 | [39] | TRACK LINK | KOB Superseded by part number: 24100J20769S001 |
| 1-2. | 55847 | [39] | TRACK LINK | KOB Superseded by part number: 24100J20769S002 |
| 1-3. | 73032 | [1] | LINK ASSY. | KOB Superseded by part number: NLS |
| 1-4. | 73031 | [1] | LINK | KOB Superseded by part number: 24100J20769S004 |
| 1-5. | 73136 | [40] | BUSHING | KOB Superseded by part number: 24100J20769S005 |
| 1-6. | 53820 | [40] | PIN | KOB Superseded by part number: 24100J20769S006 |
| 1-7. | 73145 | [80] | THRUST RING | KOB |
| 1-8. | 51899 | [80] | SEAL | KOB Superseded by part number: 24100J20769S008 |
| 1-9. | KOB54368 | [40] | PLUG | KOB Superseded by part number: 24100J20769S009 |
| 1-10. | 200912 | [4] | BEARING | BELSPARE PART Superseded by part number: FAL3225 |
| 2. | 2424N268 | [80] | SHOE | KOB |
| 3. | 2424N269 | [80] | SHOE | KOB |
| 4. | 2424N270 | [80] | SHOE | KOB |
| 5. | 2420Z2324 | [320] | BOLT | KOB |
| 6. | 2420Z2325 | [316] | NUT | KOB |
| . | YN41CU0004P1 | [4] | STEP | KOB |
