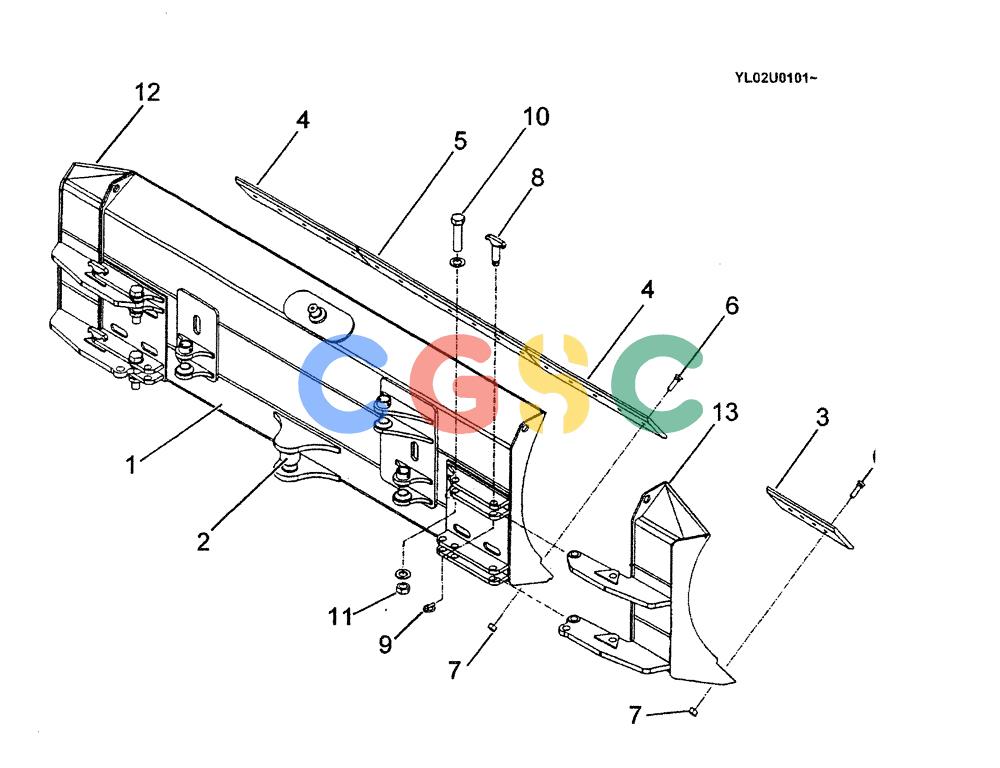

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (02-012) - DOZER INSTALLATION, BLADE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
682 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J21251F1 | [1] | DOZER BLADE | KOBDOZER BLADE ASSY Superseded by part number: AW206-004-017 |
| 1. | 2412J1618 | [1] | DOZER BLADE | KOB Superseded by part number: AW206-004-017 |
| 2. | 2425R431 | [1] | BALL, TRUNNION | BALL, TRUNNION |
| 3. | 2412P1058 | [2] | CUTTING EDGE | KOB Superseded by part number: AW530-047-055 |
| 4. | 2412P1059 | [2] | CUTTING EDGE | CUTTING EDGE |
| 5. | 2412P1060 | [1] | CUTTING EDGE | CUTTING EDGE |
| 6. | 2420T9274 | [25] | BOLT Plow -- 3/4\"-10 UNC x 2-1/4 in Long | BOLT Plow -- 3/4"-10 UNC x 2-1/4 in Long |
| 7. | 2420T9279 | [25] | NUT 3/4\"-10 UNC | NUT 3/4"-10 UNC |
| 8. | 2419P4488 | [4] | PIN | KOB1.25" Dia. x 4-1/4" Long Superseded by part number: AW717-175-092 |
| 9. | 2419T8168 | [4] | PIN | KOBRetainer -- OD 11 x 56mm Long Superseded by part number: AW545-008-005 |
| 10. | 2420T9275 | [4] | BOLT | BOLT |
| 11. | 2420T9280 | [4] | NUT | NUT |
| 12. | 2412J1619 | [1] | DOZER WING LH | DOZER WING LH |
| 13. | 2412J1620 | [1] | DOZER WING RH | DOZER WING RH |
