神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (01-002) - COUNTERWEIGHT ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
457 次

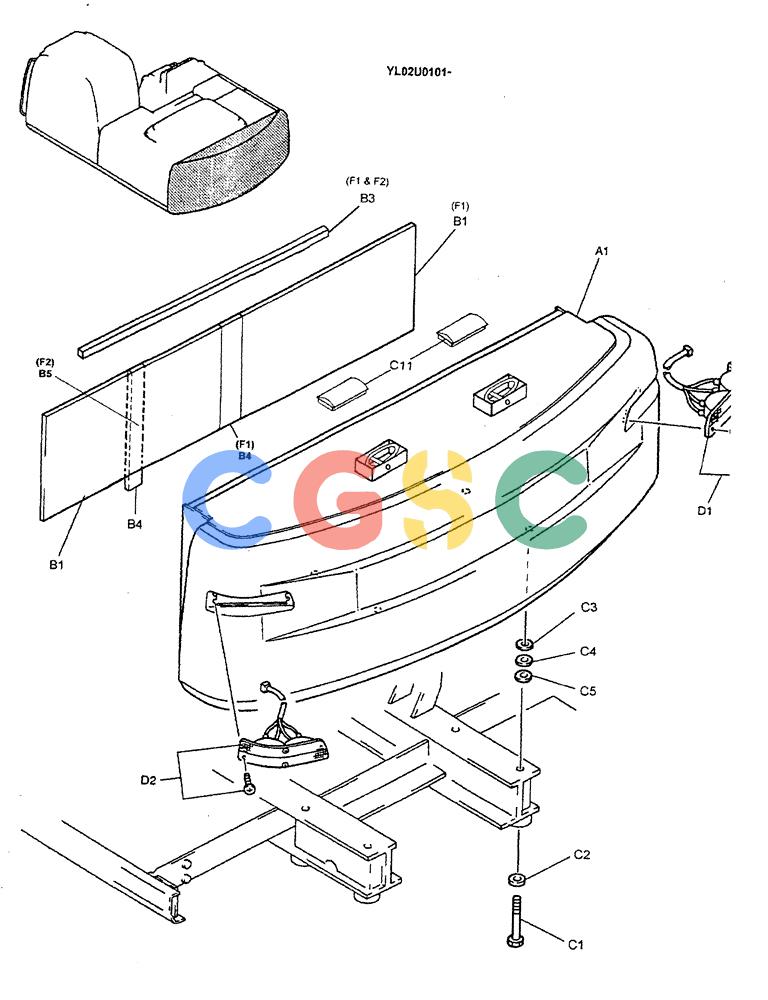

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM60C00002F1 | [1] | COUNTER WEIGHT ASSY | |
| A1. | YM60C00003D1 | [1] | COUNTERWEIGHT | KOBCOUNTERWEIGHT |
| B1. | YN60C01140P1 | [2] | FOAM INSULATION | KOB |
| B2. | YM60C01004P1 | [1] | FOAM INSULATION | KOB |
| B3. | YN60C01160P3 | [1] | INSULATING PANEL | KOB |
| B4. | LQ60C01133P1 | [1] | FOAM INSULATION | KOB |
| B5. | LQ60C01140P1 | [1] | FOAM INSULATION | KOB |
| . . | YM60C00001F1 | [1] | COUNTER WEIGHT INSTAL | |
| C1. | HS13C24310G1 | [4] | SCREW | KOBM24x3.0x310mm |
| C2. | HY26Y25054D1 | [4] | WASHER | KOBID 25 x OD 54 x Th 08mm |
| C3. | YR60C01028D6 | [3] | SHIM | KOB(1.6) |
| C4. | YR60C01028D5 | [3] | SHIM | KOB(2.3) |
| C5. | YR60C01028D7 | [4] | SHIM | KOB(3 0) |
| C11. | 2420Z2315 | [2] | PLUG | KOBPLUG, C/WACCESSORY Superseded by part number: KSP9000-0034 |
| . . | YN80E00030F1 | [1] | LAMP | KOB |
| D1. | YN80S00015F3 | [1] | LAMP | KOB |
| D2. | YN80S00015F4 | [1] | LAMP | KOB |
