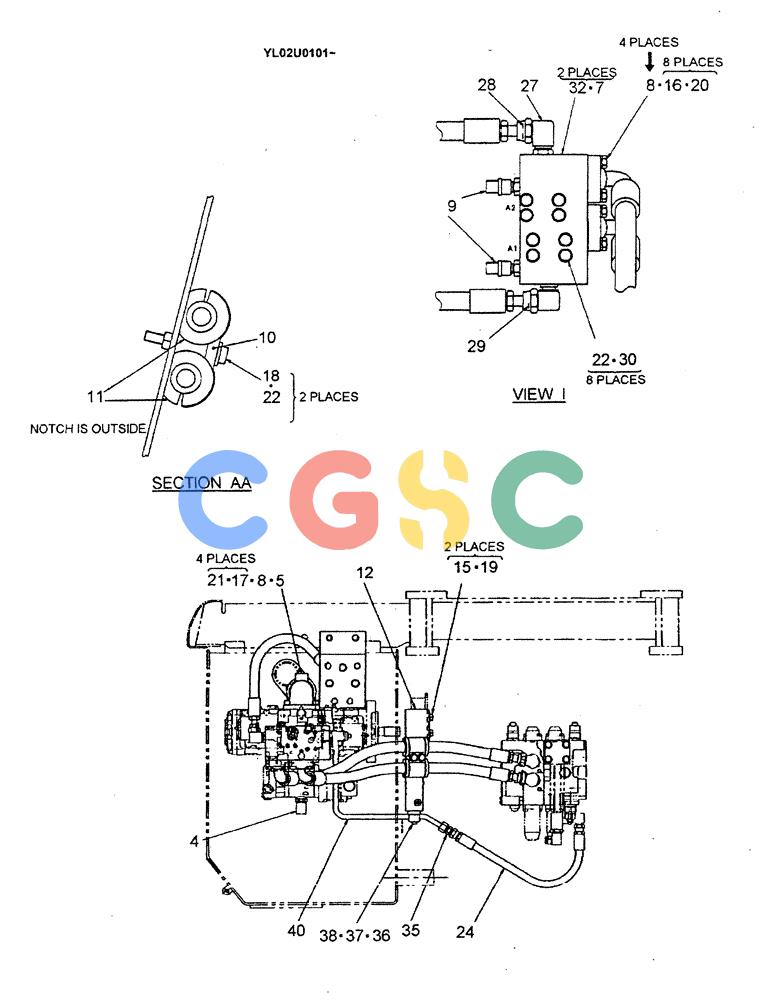

| 1. | ZX30U12086 | [1] | FLEXIBLE HOSE | KOB860mm Long (33-49/64 in) |
| 2. | ZX30U12094 | [1] | HOSE | KOB940mm Long (37 in) |
| 3. | YM30H01003P1 | [1] | HOSE | KOB |
| 4. | ZH32X08012 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 3/4", O-Ring | KOB(Incls. O-Ring ZD12P02400) |
| 5. | YN30H01010P1 | [1] | ELBOW | KOB |
| 6. | ZD11G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOB |
| 7. | ZD12P02600 | [4] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 8. | ZE13X12000 | [4] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 9. | LC52S00002P2 | [2] | PRESSURE SWITCH | KOB(Replaced by LS52S00015P1) (High Pressure) (Used for P1/P2 Option, Bucket Digging, Bucket Dump, Boom Up/down, Swing Left/Right, Arm In/Out, Travel Left/Right) Superseded by part number: YY52S00033F2 |
| 9. | LS52S00015P1 | [2] | SENSOR | KOB(New part #) (Added by SB S030-41-K003) (High Pressure) (Used for P1/P2/P3 Pump, Boom Head Pressure for Overload Alarm) (Incls. O-Ring ZD12P01400) |
| 9-0. | YY52S00033F2 | [1] | SENSOR | KOBKit Includes Ref 9 - 9-4 (Refer to SB S030-41-K003) |
| 9-1. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 9-2. | YN13E01610P1 | [1] | HARNESS | KOB(Added with new part # press switch) |
| 9-3. | LS30H01024P1 | [1] | HYD CONNECTOR | SM(Added with new part # press switch) |
| 9-4. | YT42H01128P1 | [1] | 90 ELBOW | KOB(Added with new part # press switch) |
| 10. | YN03H01427P1 | [1] | CLAMP | KOB122.5x50x48mm |
| 11. | YN03H01432P1 | [1] | BUSHING,28mm ID x 56mm OD x 70mm L | KOBSplit |
| 12. | YN30H01050P1 | [1] | SUPPORT | KOB |
| 13. | ZC16X09100 | [4] | CLIP | KOBClamp, Hose -- Min 80 x Max 101mm |
| 15. | ZS18C12030 | [2] | SCREW,Hex, M12 x 30mm | KOB |
| 16. | ZS18C10035 | [8] | SCREW,Hex, M10 x 35mm | KOB |
| 17. | ZS28C12030 | [4] | SCREW,Hex Socket Head, M12 x 30mm | KOB |
| 18. | ZW16H10000 | [5] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 19. | ZW16H12000 | [4] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 20. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 21. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 22. | ZS18C10075 | [10] | SCREW,Hex, M10 x 75mm | KOB |
| 23. | ZX40H10074 | [2] | HOSE,740.00 mm, SAE 100R13 | KOB |
| 24. | ZX22M08058 | [1] | HOSE | KOB580mm Long (22-53/64 in) Superseded by part number: ZX22M08060 |
| 25. | ZA23F15008 | [1] | HYD CONNECTOR | KOB |
| 26. | ZG23F10008 | [2] | HYD CONNECTOR | KOB1-14UNS x 1/2" PF x 43.5mm (5/8x1/2) (Incls. O-Ring 237-6008) |
| 27. | ZG33F10008 | [2] | 90 ELBOW,1"-14 UNS x PF 1/2" | KOB(Incls. O-Ring ZD12P01800) |
| 28. | ZS18C12035 | [2] | SCREW,Hex, M12 x 35mm | KOB |
| 29. | ZD12A01600 | [4] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| 30. | ZW16X10000 | [8] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 31. | LB30V00004F1 | [1] | CONTROL VALVE | KOBIndependent Travel |
| 32. | YM30H01005P1 | [1] | JUNCTION BLOCK | KOB |
| 33. | YM30H01001P1 | [1] | BRACKET | |
| 34. | ZS18C10020 | [3] | SCREW,Hex, M10 x 20mm | KOB |
| 35. | 2444R721D10 | [1] | HYD CONNECTOR | KOB |
| 36. | ZC26X15009 | [1] | CLAMP | KOB |
| 37. | ZS18C08040 | [1] | SCREW,Hex, M8 x 40mm | KOB |
| 38. | ZW16H08000 | [1] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 39. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 40. | YM30H01004P1 | [1] | TUBE | KOB |
| 41. | 2444Z3715 | [1] | 90 ELBOW | KOB90° -- 1/2" PF x 56mm Long (Incls. O-Ring ZD12P01800) |
