纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (02-007[00]) - LOWER ROLLER ASSEMBLY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
145 次

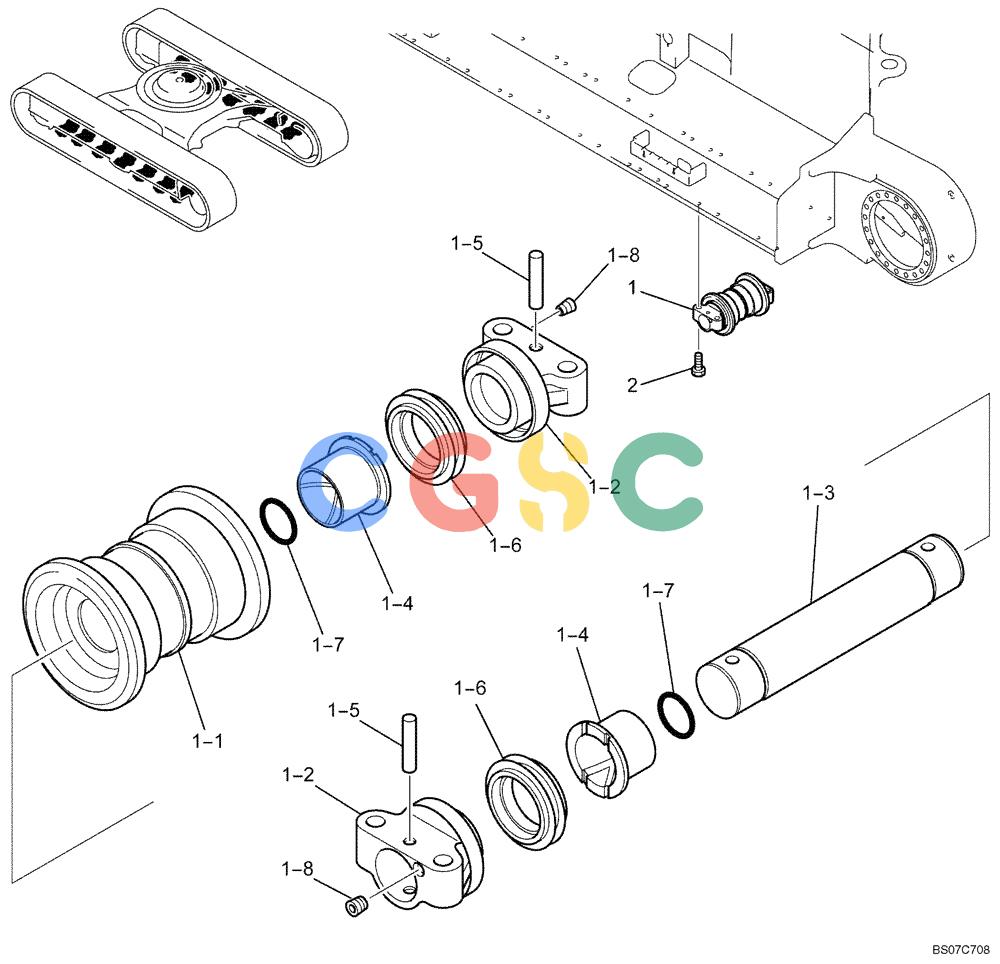

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LQ64D00034F1 | [16] | ROLLER | KOBAssembly Superseded by part number: LQ64D00054F1 |
| 1-1. | LQ64D01029P1 | [1] | ROLLER | KOBOD Ø185 x 220mm Long |
| 1-2. | YN64D01020P1 | [2] | COLLAR | KOB Superseded by part number: YN64D01041P1 |
| 1-3. | LQ64D01028P1 | [1] | SHAFT | KOBOD 65 x 354mm Long |
| 1-4. | 2405P489 | [2] | BUSHING,66mm ID x 87mm OD x 64.5mm L | KOBID 65 x OD 69 x 60mm Long |
| 1-5. | 2419T7353 | [2] | PIN,16mm OD x 83mm L | KOBOD 16 x 83mm Long |
| 1-6. | LQ64D01036P1 | [2] | SEAL | KOBFloating -- ID 90 x OD 114.45 x Th 33mm |
| 1-7. | ZD11G06000 | [2] | O-RING,59.40mm ID x 65.60mm OD x 3.10mm | KOBID 59.40 ± 0.61 x OD 65mm |
| 1-8. | ZE82T04000 | [2] | PLUG | KOB |
| 2. | 2420P1580D4 | [64] | BOLT,Hex, M18 x 1.5 x 80mm | KOBM18x1.50x80mm |
