纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (02-008[00]) - UPPER ROLLER ASSEMBLY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
756 次

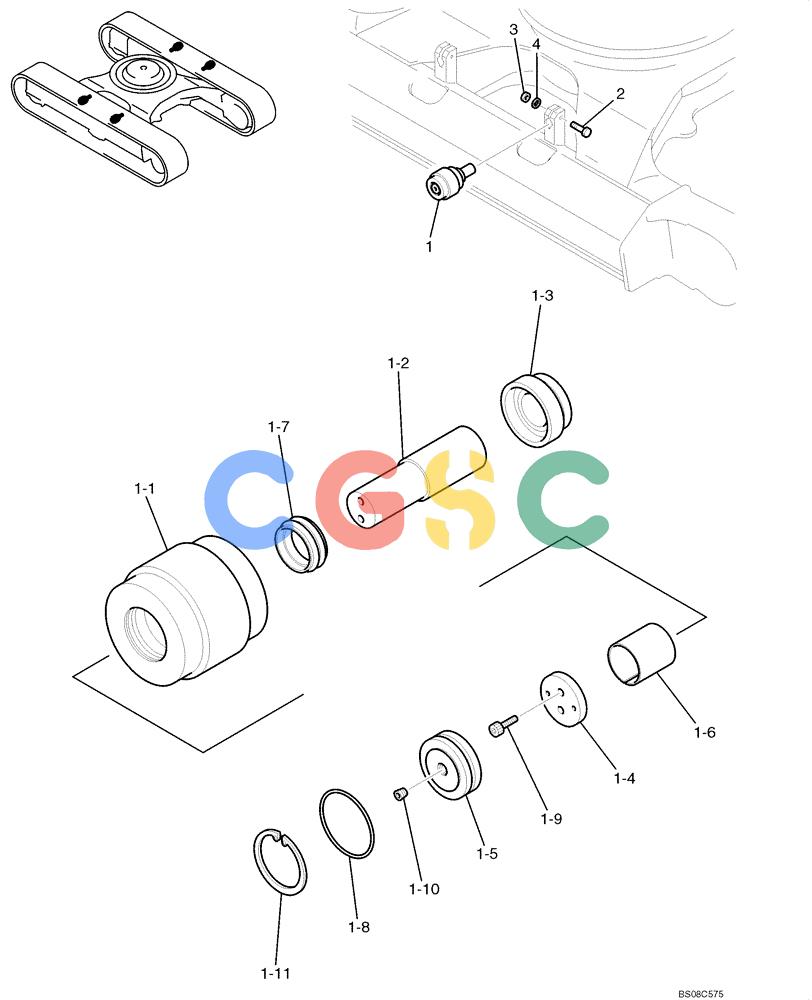

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN64D01068F1 | [4] | ROLLER | KOBAssembly Incls. Refs. (1-1)-(1-11) Superseded by part number: YN64D01144F1 |
| 1-1. | 2413N469 | [1] | ROLLER | KOB |
| 1-2. | YN64D01069P1 | [1] | SHAFT | KOB Superseded by part number: YN64D01144F1 |
| 1-3. | 2418P21176 | [1] | COLLAR | KOB Superseded by part number: 2418P22958 |
| 1-4. | YN64D01038P1 | [1] | PLATE | KOB |
| 1-5. | YN64D01026P1 | [1] | COVER | KOB |
| 1-6. | 2405T852 | [1] | BUSHING,45mm ID x 50mm OD x 50mm L | KOBID 45 x OD 50 x 50mm Long |
| 1-7. | 2445R361F1 | [1] | SEAL,48mm ID x 68.6mm OD x 27mm Thk | KOB |
| 1-8. | ZD11P06500 | [1] | O-RING | KOBID 64.6 ± 0.57 x OD 75mm |
| 1-9. | YN64D01016P1 | [2] | BOLT | KOBM12x1.75x28mm |
| 1-10. | YN55V01090P1 | [1] | PLUG | SM1/4" PT |
| 1-11. | ZR26X07500 | [1] | RING | KOBRetaining -- ID 75 x OD 79.5 x Th 2.5mm |
| 2. | YN52F01100D3 | [4] | CAP | KOBScrew -- M20x2.50x100mm |
| 3. | ZN13C20016 | [4] | NUT | KOBM20x2.50mm |
| 4. | ZW13H20000 | [4] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
