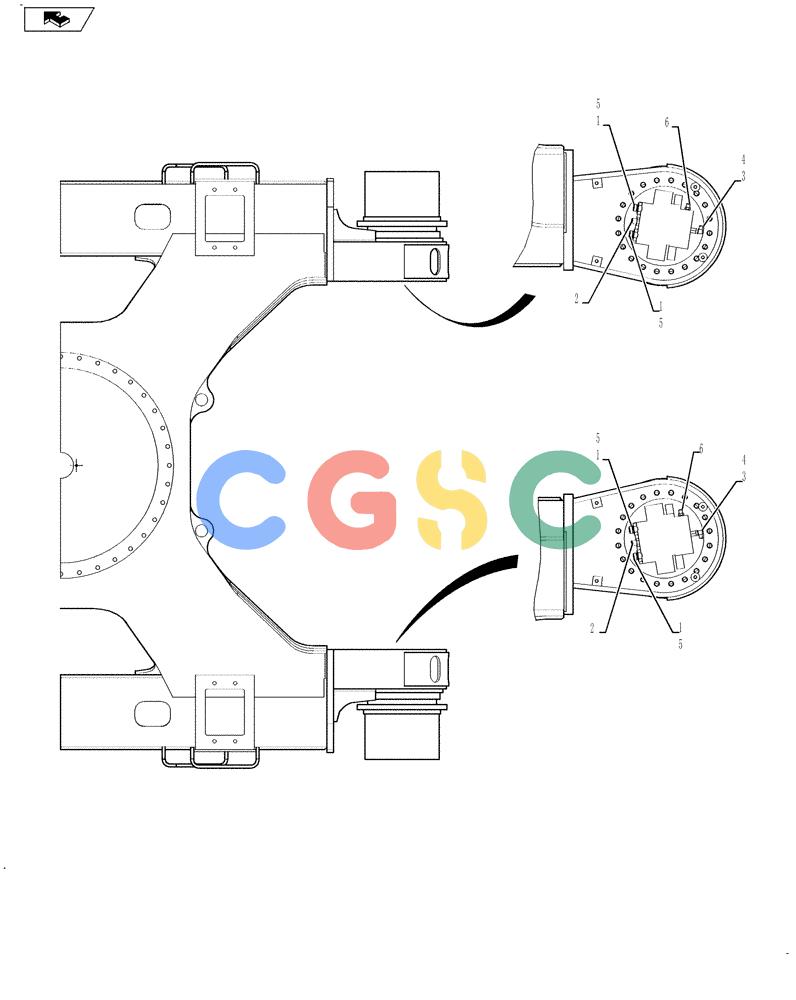

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (02-015[00]) - HYD LINES, PROPEL STD, H&W New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
218 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ZG23F12016 | [4] | HYD CONNECTOR | KOB |
| 2. | ZH22X08000 | [2] | HYD CONNECTOR | KOB |
| 3. | 2444Z2525 | [2] | HYD CONNECTOR | KOBH&W Only |
| 4. | ZH32X04000 | [2] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOBH&W Only |
| 5. | ZD12A01800 | [4] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
| 6. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOBSTD Only |
