纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (02-016[00]) - SHOE ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
366 次

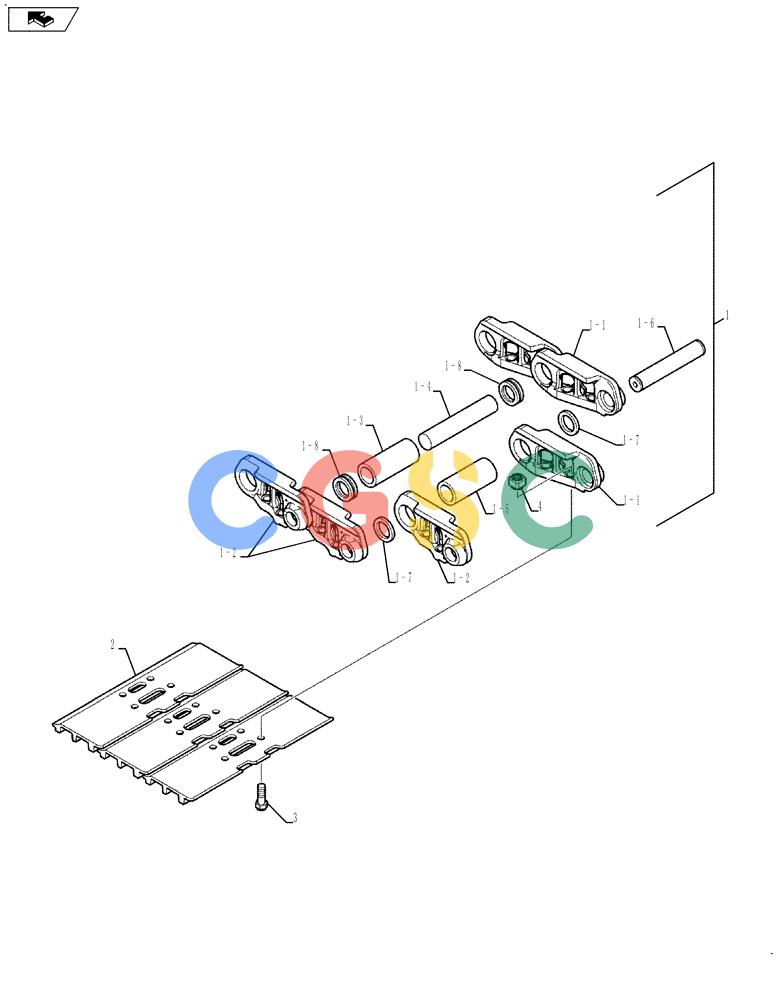

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN62D00017F3 | [1] | TRACK LINK | KOBFor 600mm, 700mm, 800mm, and 900mm Triple Grouser |
| 1. | YN62D00007F2 | [1] | LINK ASSY. | KOBFor 600mm and 800mm Single Grouser Shoes Superseded by part number: 77280656, YN62D00017F3 |
| 1-1. | 2424J170D1 | [49] | TRACK LINK | KOBRH |
| 1-2. | 2424J170D2 | [49] | LINK | KOBLH |
| 1-3. | 2405P694 | [48] | BUSHING,37.13mm ID x 58.78mm OD x 138mm L | KOB |
| 1-4. | 2419P3042 | [48] | PIN,36.63mm OD x 210mm L | KOB |
| 1-5. | 2405P392 | [1] | BUSHING,36.83mm ID x 58.78mm OD x 129mm L | KOBMaster |
| 1-6. | YN62D01017P1 | [1] | PIN,36.5mm OD x 210mm L | KOBMaster |
| 1-7. | 2418T25964 | [2] | COLLAR | KOBFor YN62D00017F3 Chain Assy |
| 1-7. | 2418T12108 | [2] | COLLAR CLAMP | KOBFor YN62D00007F2 Chain Assy |
| 1-8. | YN62D01028P1 | [96] | SEAL,37.25mm ID x 60.5mm OD x 14.2mm Thk | KOBFor YN62D00017F3 Chain Assy |
| 1-8. | 2445Z1123C2 | [96] | SEAL | KOBFor YN62D00007F2 Chain Assy |
| 2. | YN60D00017P1 | [49] | SHOE | KOB600mm Triple Grouser Superseded by part number: 2424N196D1 |
| 2. | YN60D00042P1 | [49] | SHOE | KOB700mm Double Grouser |
| 2. | 2424N196D2 | [49] | SHOE,700mm Triple Grouser | KOB700mm Triple Grouser |
| 2. | 2424N196D3 | [49] | SHOE,800mm Triple Grouser | KOB800mm Triple Grouser |
| 2. | 2424N196D4 | [49] | SHOE,900mm Triple Grouser | KOB900mm Triple Grouser |
| 2. | YN60DU0004P1 | [49] | SHOE | KOB600mm Single Grouser |
| 2. | YN60DU0006P1 | [49] | SHOE | KOB800mm Single Grouser |
| 3. | YN60D01007P1 | [196] | BOLT | KOBM20x1.50x55mm Use with 700mm and 900mm Triple Grouser Shoes |
| 3. | YN60D01010P1 | [196] | BOLT | KOBM20x1.50x57mm Use with 700mm Double Grouser Shoes |
| 3. | YN60D01011P1 | [196] | BOLT | KOBM20x1.50x55mm Use with 800mm and 600mm Triple Grouser Shoes |
| 4. | 2420T7458 | [196] | BOLT,Spher Hex, M20 x 1.5 x 60mm, Cl 2 | KOBM20 For Single Grouser Shoes |
| 4. | YN60D01006P1 | [196] | NUT | KOBM20 For Double and Triple Grouser Shoes |
| 4. | 2420Z1293 | [196] | NUT | KOBM20 For Single Grouser Shoes Superseded by part number: 2420P1584 |
