纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (02-017[00]) - SHOE ASSY (H & W) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
739 次

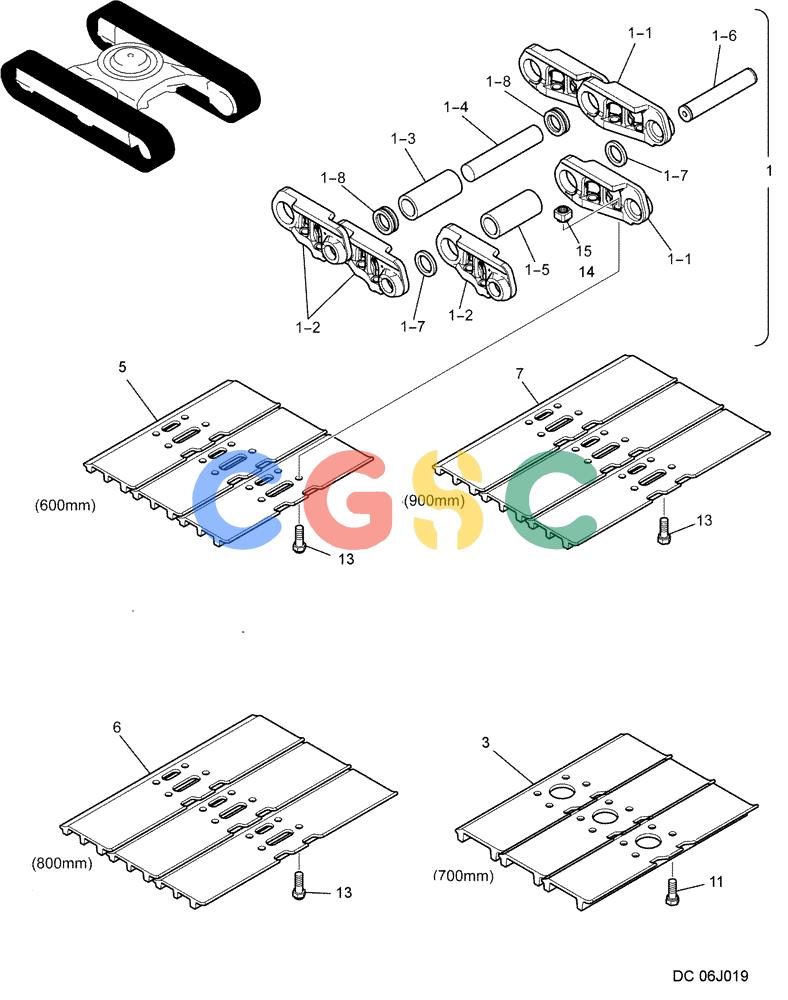

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN62DU0001F1 | [1] | LINK ASSY. | KOBTRACK LINK ASSY |
| 1-1. | 2424J376 | [49] | TRACK LINK | KOBRH Superseded by part number: 2424J171D1 |
| 1-2. | 2424J377 | [49] | TRACK LINK | KOBLH |
| 1-3. | 2405P416 | [48] | BUSHING,37.1mm ID x 58.73mm OD x 142.97mm L | KOB |
| 1-4. | 2419P4210 | [48] | PIN,36.66mm OD x 206.40mm L | KOB Superseded by part number: 2419T6091 |
| 1-5. | 2405P415 | [1] | BUSHING | KOBMaster Superseded by part number: 2405P392 |
| 1-6. | 2419P4211 | [1] | PIN,36.5mm OD x 206.4mm L | KOBMaster |
| 1-7. | 2418T21131 | [2] | COLLAR | KOB |
| 1-8. | 2445Z1449 | [96] | SEAL,40mm ID x 59.8mm OD x 5.7mm Thk | KOB |
| 3. | YN60D00042P1 | [49] | SHOE | KOB700mm |
| 5. | LQ60D00016P1 | [49] | TRACK SHOE | KOB600mm |
| 6. | LQ60D00017P1 | [49] | SHOE | KOB800mm |
| 7. | LQ60D00018P1 | [49] | SHOE | KOB900mm |
| 11. | 2420T7458 | [196] | BOLT,Spher Hex, M20 x 1.5 x 60mm, Cl 2 | KOBM20x1.50x60mm For 700mm Shoes |
| 13. | 2420T6976 | [196] | BOLT,Spher Hex, M20 x 1.5 x 56.50mm, Cl 2 | KOBM20x1.50x56.5mm |
| 14. | 2420P1552 | [196] | NUT,M20, 1.5mm Pitch, HT | KOBM20x1.50mm Superseded by part number: 2420P1584 |
| 15. | 2420Z1293 | [196] | NUT | KOBM20x1.50mm For 700mm Shoes Superseded by part number: 2420P1584 |
