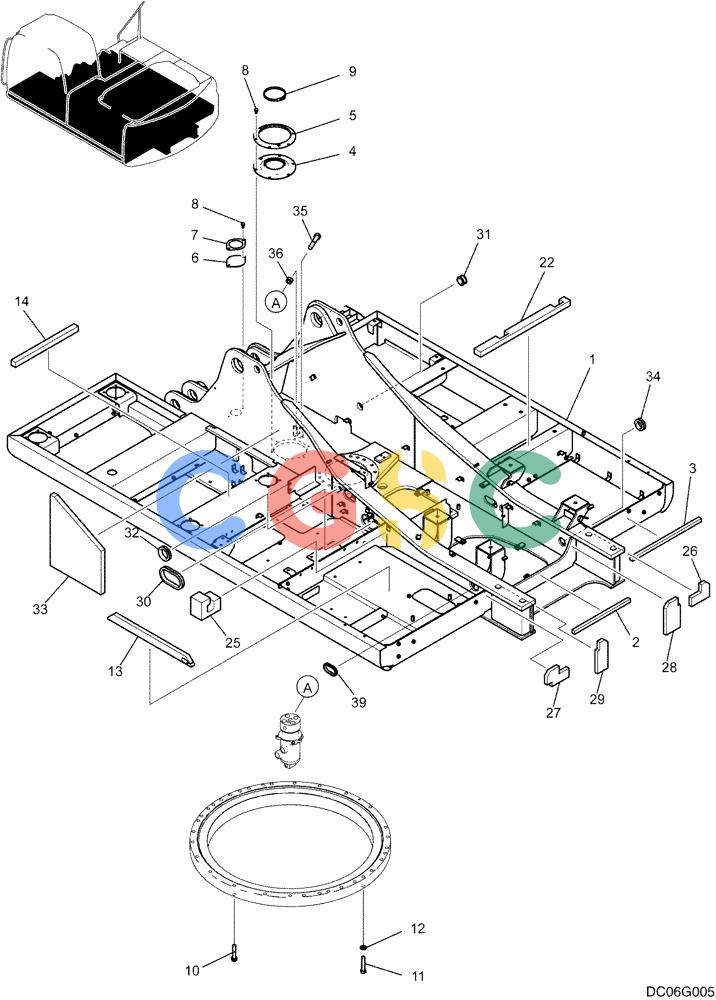

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-002[00]) - FRAME GROUP, UPPER (H&W) (BOLT SPACER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
469 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | YN52F01735P1 | [1] | FOAM INSULATION | KOBINSULATION |
| 3. | YN52F01736P1 | [1] | FOAM INSULATION | KOBINSULATION |
| 4. | YN52F01857P1 | [1] | SEAL | KOBSEAL |
| 5. | YN52F01615P1 | [1] | PLATE | SMPLATE |
| 6. | YN52F01159P1 | [1] | PLATE | KOB |
| 7. | 2416Z434 | [1] | PACKING | KOBRubber |
| 8. | ZM73C10025 | [8] | BOLT,M10x25mm - Course Thread | KOBM10x1.50x25mm (Incls. Washer) |
| 9. | ZC16X12200 | [1] | CLIP | KOBClamp, Hose -- Min 104 x Max 139mm |
| 11. | HS53C20105G1 | [1] | CAP | KOBScrew -- M20x2.0x105mm |
| 12. | ZW13H20000 | [33] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| 13. | YN52F02051P1 | [1] | INSULATOR | SMINSULATION |
| 14. | YN52F01737P1 | [1] | FOAM INSULATION | KOBINSULATION |
| 22. | YN52F01738P1 | [1] | FOAM INSULATION | KOBINSULATION |
| 25. | YN52F01832P1 | [1] | INSULATION | KOBINSULATION |
| 26. | YN52F01950P1 | [1] | FOAM INSULATION | KOBINSULATION |
| 27. | YN52F01974P1 | [1] | FOAM INSULATION | KOBINSULATION |
| 28. | YN52F01952P1 | [1] | FOAM INSULATION | KOBINSULATION |
| 30. | YN64H01286D1 | [1] | GROMMET | KOBGROMMET |
| 31. | PH13E01071P1 | [1] | GROMMET | KOB |
| 32. | YN13E01363P1 | [1] | GROMMET | KOBGROMMET |
| 33. | YN52F01959P1 | [1] | FOAM INSULATION | KOBINSULATION |
| 34. | PH02H01108P1 | [1] | GROMMET | KOBGROMMET |
| 35. | ZS18F24130 | [1] | SCREW | KOBM24x2.0x130mm |
| 36. | ZN18F24019 | [1] | NUT | KOBM24x2.0mm |
| 37. | LC52F01519P1 | [1] | INSULATOR | SMINSULATION |
| 38. | YN52F02053P1 | [1] | INSULATOR | SMINSULATION |
