纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-003[00]) - COUNTERWEIGHT INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
780 次

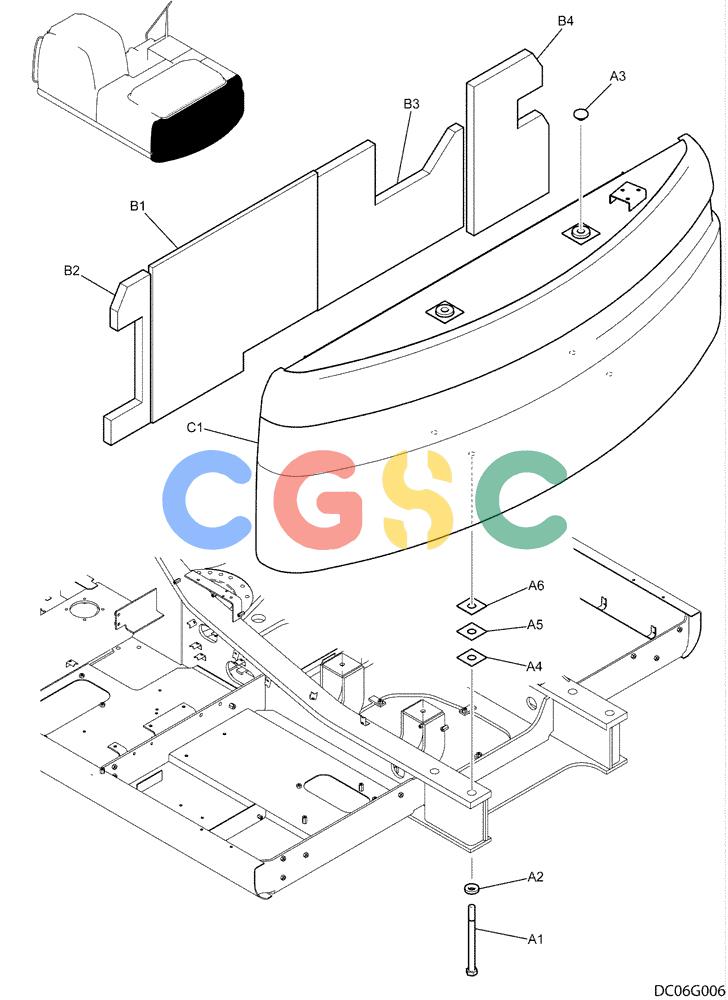

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YN60C01300P1 | [4] | CAP,M3 x 8mm | KOBScrew -- M27x335mm |
| A2. | HY26Y28060G3 | [4] | WASHER | KOBID 27.5 x OD 60 x Th 12mm |
| A3. | 2420Z1340D2 | [2] | PLUG | KOBOD 33 x 30mm Long |
| A4. | YN60C01470P1 | [3] | SHIM | KOBShim (1.6) |
| A5. | YN60C01471P1 | [3] | SHIM | KOBShim (2.3) |
| A6. | YN60C01472P1 | [4] | SHIM | KOBShim (3.2) |
| B1. | LQ60C01207P2 | [1] | FOAM INSULATION | KOBInsulation, Serial Range: -YQ09U4810 |
| B2. | LQ60C01208P3 | [1] | INSULATION | KOBInsulation |
| B3. | YN60C01430P1 | [1] | FOAM INSULATION | KOBInsulation |
| B4. | YN60C01432P2 | [1] | INSULATION | KOBInsulation |
| . . | YN13E01375P1 | [2] | CLIP,M8 x 8.20mm Shank | KOBAnchor Wire Ties, Not Shown |
| . . | PY01P01043D3 | [2] | CABLE TIE,188mm L | KOBWire Ties, 188mm Long, Not Shown |
| C1. | YN60C00168P1 | [1] | COUNTERWEIGHT,4.63 Metric Tons | KOB4.63 Tons (metric) (5.1 Tons) |
