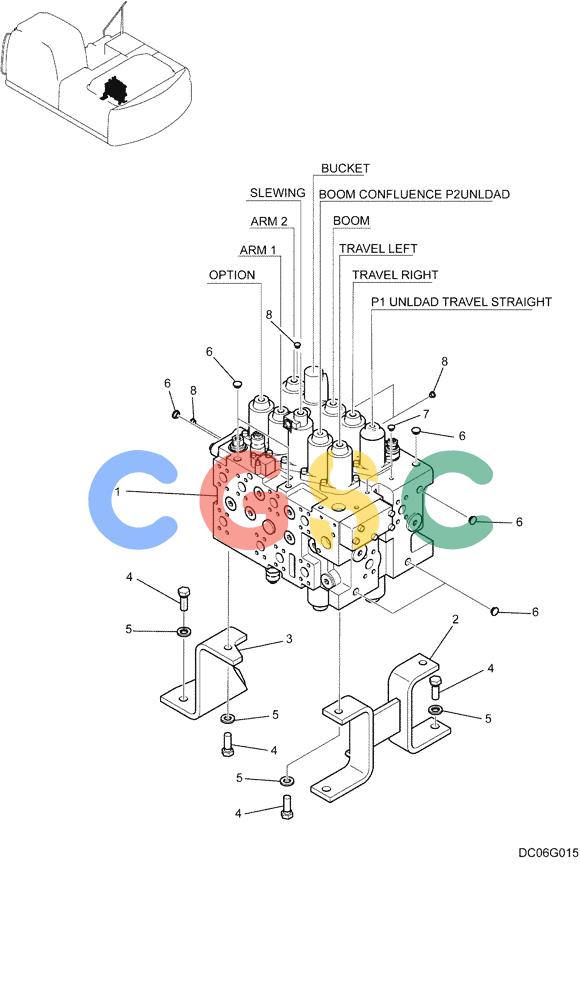

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-017[00]) - VALVE INSTALLATION (STD) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
705 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN30V00101F5 | [1] | MAIN DISTRIBUTOR | KOBASSY Superseded by part number: YN30V00101F6 |
| 1. | YN30V00101F6 | [1] | CONTROL VALVE | KOBAssembly |
| 2. | YN64H01261P1 | [1] | BRACKET | KOB |
| 3. | YN64H01316P1 | [1] | BRACKET | KOB |
| 4. | ZS18C16045 | [7] | SCREW,Hex, M16 x 45mm | KOBM16x2.0x45mm |
| 5. | ZW16H16000 | [7] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 6. | YN64H01392D1 | [8] | CAP | KOB14.0mm (Nylon) |
| 7. | YN64H01393D1 | [2] | CAP | KOB09.0mm (Nylon) |
| 8. | YN64H01391D1 | [3] | CAP | KOB10.0mm Slotted Plastic |
