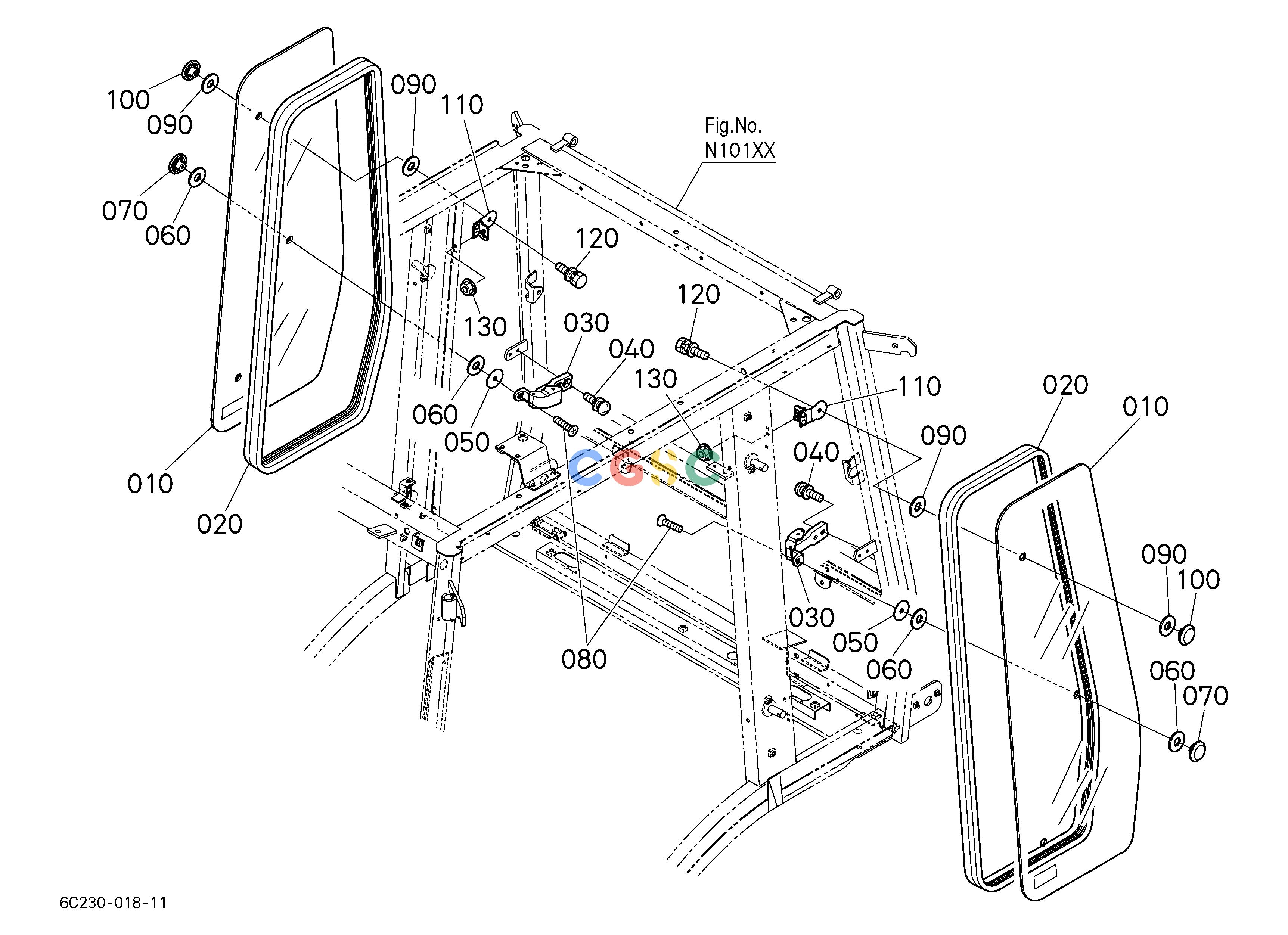

久保田零件查询N21800 SIDE WINDOW CABEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
595 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C23072213
|
[2] |
GLASS,SIDE
|
7.7000(lbs); 3.500
|
| 020. |
6C23072222
|
[2] |
STRIP,SIDE WEATHER
|
1.3200(lbs); 0.600
|
| 020. |
6C23072224
|
[2] |
STRIP,SIDE WEATHER
|
1.3200(lbs); 0.600
|
| 030. |
3G71071490
|
[2] |
COMP.LOCK,WINDOW
|
0.1100(lbs); 0.050
|
| 040. |
0300450612
|
[4] |
SCREW,SEMS(PAN HEAD)
|
0.0110(lbs); 0.005
|
| 050. |
T027061970
|
[2] |
PLATE
|
0.0220(lbs); 0.010
|
| 060. |
T027061980
|
[4] |
GASKET
|
0.0066(lbs); 0.003
|
| 070. |
T205571870
|
[2] |
BRACKET,SIDE GLASS
|
0.0264(lbs); 0.012
|
| 070. |
T205571872
|
[2] |
BRACKET,SIDE GLASS
|
0.0264(lbs); 0.012
|
| 080. |
0305650516
|
[2] |
SCREW,FLAT HEAD(PHILLIPS)
|
0.0528(lbs); 0.024
|
| 090. |
T027061980
|
[8] |
GASKET
|
0.0066(lbs); 0.003
|
| 100. |
T027061890
|
[4] |
HOLDER
|
0.0242(lbs); 0.011
|
| 100. |
T027061892
|
[4] |
HOLDER
|
0.0242(lbs); 0.011
|
| 110. |
6C23072240
|
[4] |
PLATE,GLASS
|
0.0990(lbs); 0.045
|
| 120. |
3040019060
|
[4] |
BOLT,FLANGE
|
0.0132(lbs); 0.006
|
| 130. |
0202150060
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
