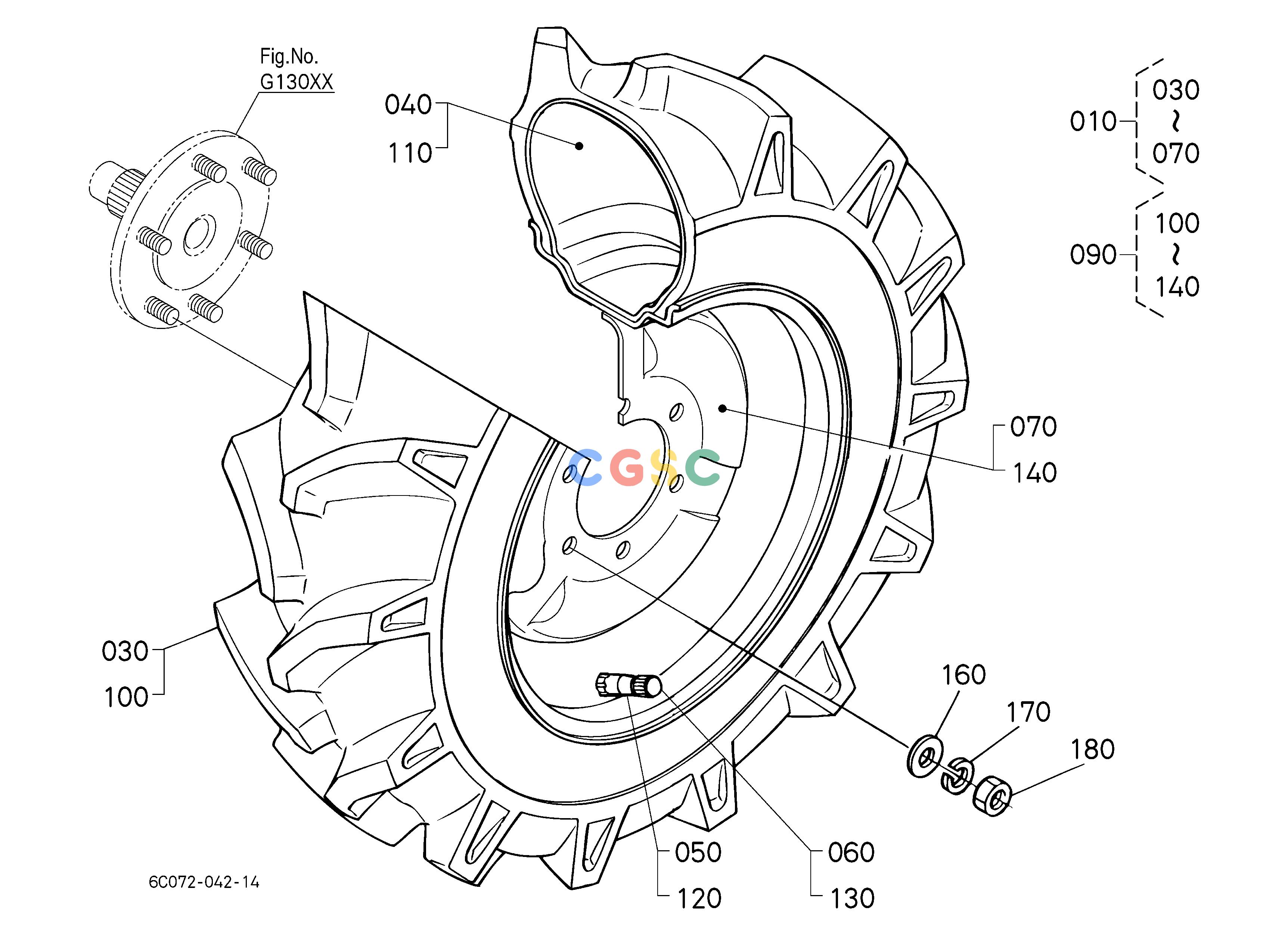

久保田零件查询R10102 FRONT WHEEL (7-12) ## S.No.;A:<=57850 FRONT TIREEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
500 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C07250020
|
[1] |
ASSY WHEEL LH
|
35.2000(lbs); 16.000
|
| 030. |
6C07250040
|
[1] |
TIRE
|
17.6000(lbs); 8.000
|
| 040. |
6C07250080
|
[1] |
TUBE
|
1.5840(lbs); 0.720
|
| 050. |
3215027740
|
[1] |
CORE,VALVE
|
0.0066(lbs); 0.003
|
| 060. |
3824011690
|
[1] |
CAP,VALVE
|
0.0044(lbs); 0.002
|
| 070. |
6C07250050
|
[1] |
WHEEL
|
11.6600(lbs); 5.300
|
| 090. |
6C07250030
|
[1] |
ASSY WHEEL RH
|
35.2000(lbs); 16.000
|
| 100. |
6C07250040
|
[1] |
TIRE
|
17.6000(lbs); 8.000
|
| 110. |
6C07250080
|
[1] |
TUBE
|
1.5840(lbs); 0.720
|
| 120. |
3215027740
|
[1] |
CORE,VALVE
|
0.0066(lbs); 0.003
|
| 130. |
3824011690
|
[1] |
CAP,VALVE
|
0.0044(lbs); 0.002
|
| 140. |
6C07250050
|
[1] |
WHEEL
|
11.6600(lbs); 5.300
|
| 160. |
0401360120
|
[12] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 170. |
0451260120
|
[12] |
WASHER,SPRING
|
0.0110(lbs); 0.005
|
| 180. |
0217650120
|
[12] |
HEX.NUT
|
0.0220(lbs); 0.010
|
