纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-025[01]) - HYD LINES, RETURN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
411 次

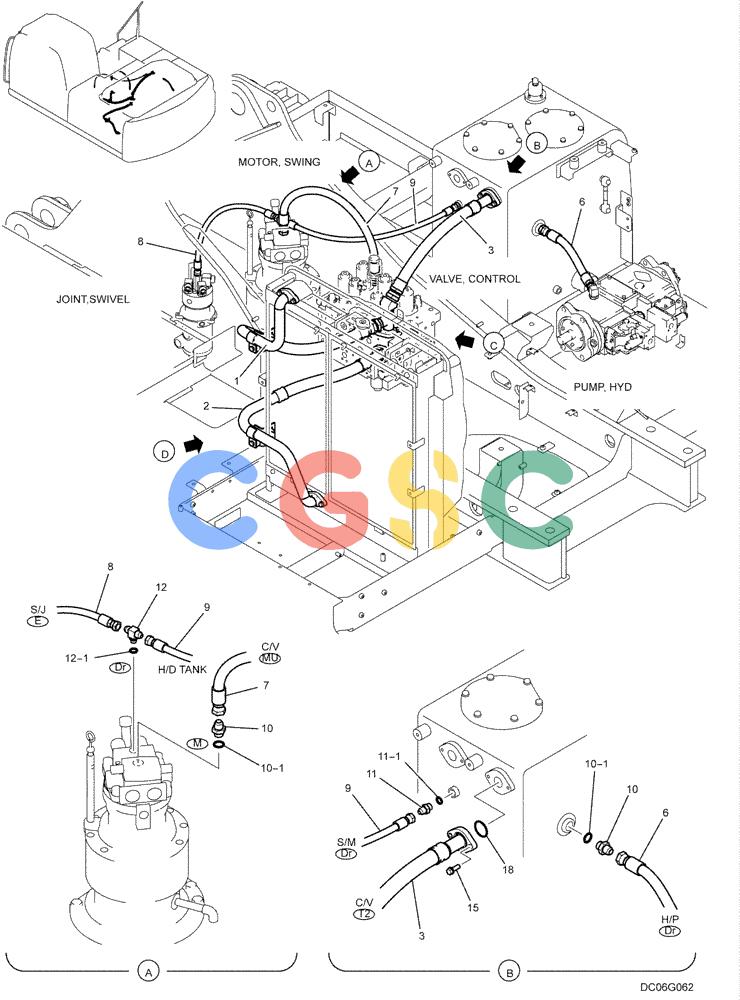

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN32H01224D3 | [1] | RIGID TUBE | SM1178.6mm Long (46-13/32 in) (No O-Ring supplied) |
| 2. | YN32H01226D2 | [1] | RIGID TUBE | SM1170mm Long (46-1/16 in) (No O-Ring supplied) (ZD12P04800) |
| 3. | YN32H01211D1 | [1] | HOSE,38.1mm ID x 660mm L | KOB660mm Long (25-63/64 in) |
| 6. | ZX22M12038 | [1] | HOSE ASSY. | KOB380mm Long Superseded by part number: ZX22M12040 |
| 7. | ZX22M12088 | [1] | HOSE | KOB880mm Long (34-41/64 in) Superseded by part number: ZX22M12090 |
| 8. | ZX21M08070 | [1] | HOSE ASSY. | KOB700mm Long (27-35/64 in) |
| 9. | ZX21M08084 | [1] | HOSE ASSY. | KOB840mm Long (33-1/16 in) Superseded by part number: ZX21M08085 |
| 10. | ZH22X12000 | [3] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| 10-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 11. | ZH22X08000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 11-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 12. | 2444Z2360 | [1] | TEE | KOB(2) 1/2" PF x 3/8" PF x 64mm Long (Incls. O-Ring ZD12P01400) |
| 12-1. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 15. | HM83C12035G1 | [10] | BOLT | KOBM12x35mm |
| 18. | ZD12P04800 | [3] | O-RING,3.5mm Thk x 47.7mm ID | KOBID 47.70 ± 0.44 x OD 54.7mm |
