纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-031[00]) - CONTROL LINES, VALVE (NIBBLER & BREAKER W/ROTATION) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
744 次

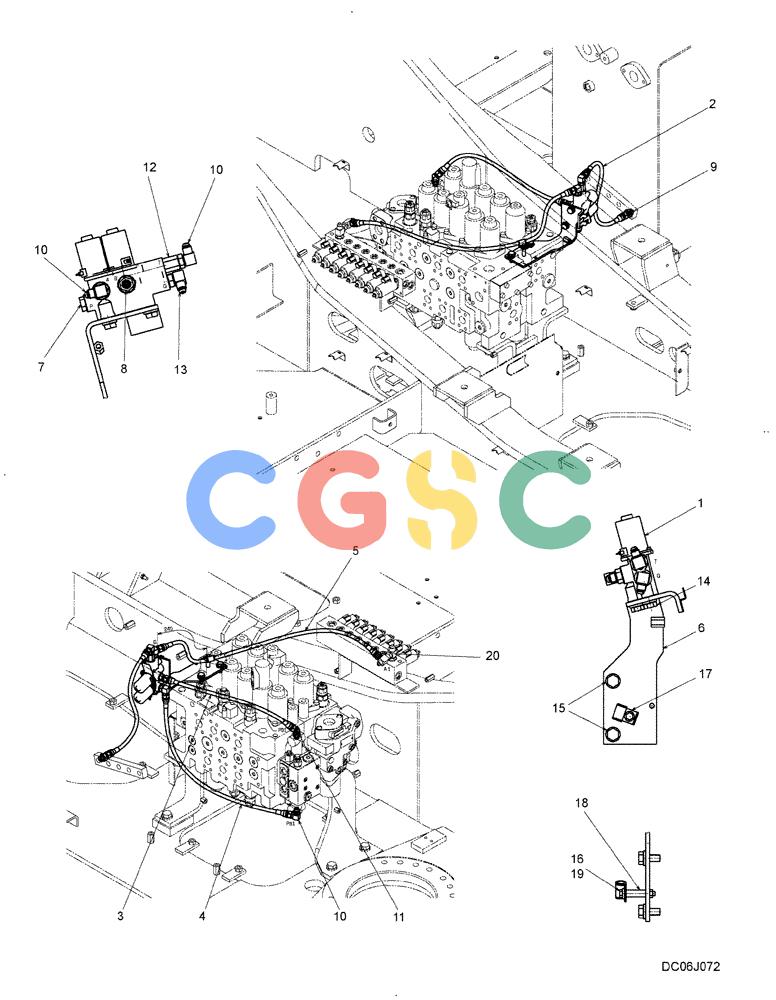

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LC35V00004F3 | [1] | HYDRAULIC VALVE | SMAssembly, Solenoid |
| 2. | 2420R349D048 | [1] | HOSE ASSY. | KOB480mm Long (18-57/64 in) Superseded by part number: 2420R349D050 |
| 3. | 2420R349D050 | [1] | HOSE,500.00 mm | KOB500mm Long (19-11/16 in) |
| 4. | 2420R349D065 | [1] | HOSE,650.00 mm | KOB650mm Long (25-1/2 in) Superseded by part number: HX21E04065DX |
| 5. | 2420R349D085 | [1] | HOSE,6.35mm ID x 850mm L | KOB850mm Long (33-29/64 in) |
| 6. | YN64H01370P1 | [1] | BRACKET | KOB |
| 7. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 8. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 9. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
| 10. | ZH32X04000 | [3] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 11. | ZH42X04000 | [1] | 45 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 45° -- (Incls. O-Ring 237-6004) |
| 12. | 2444Z2525 | [1] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) |
| 13. | HH35X04004G3 | [1] | 90 ELBOW | KOB90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| 14. | ZM73C10020 | [2] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
| 15. | ZM73C10025 | [2] | BOLT,M10x25mm - Course Thread | KOBM10x1.50x25mm (Incls. Washer) |
| 16. | ZS18C06050 | [1] | SCREW,Hex, M6 x 50mm | KOBM06x1.0x50mm |
| 17. | EW02E01016D4 | [1] | CLIP | KOBClamp, Single -- Ø10x17mm Long |
| 18. | ZY26X02030 | [1] | SPACER | KOB |
| 19. | ZW16H06000 | [1] | WASHER | KOBID 06 x OD 15 x Th 3.2mm |
| 20. | 2444Z2544 | [1] | TEE | KOB1/4"PTx60mm Long (No O-Ring supplied) |
