纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-030[00]) - CONTROL LINES, VALVE (NIBBLER & BREAKER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
173 次

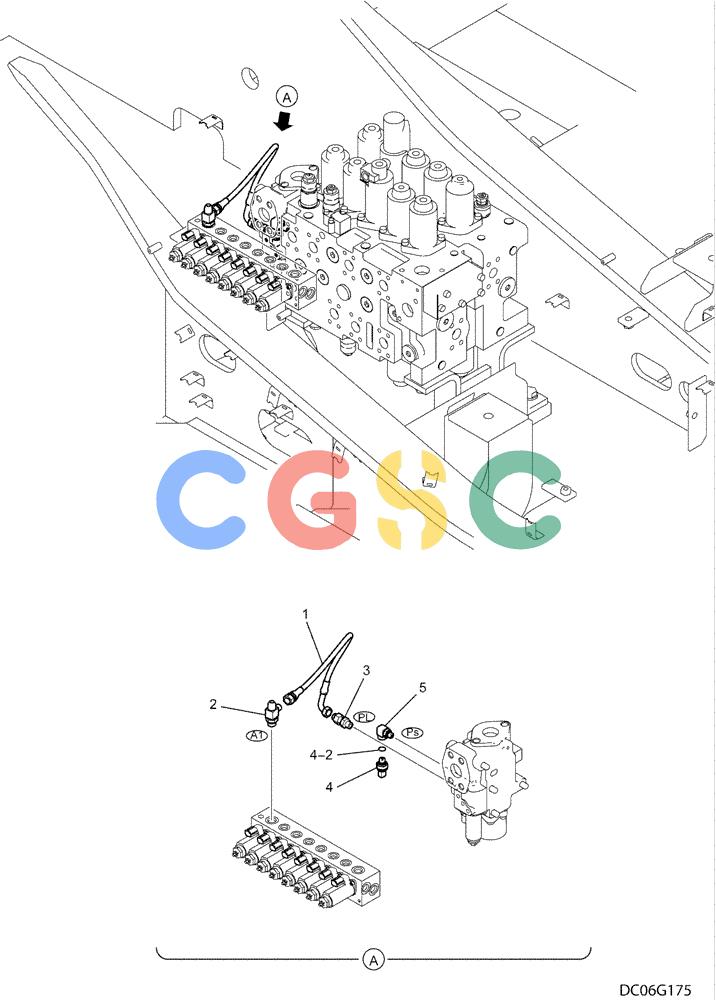

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2444R963D7 | [1] | HOSE,6.35mm ID x 500mm L | KOB |
| 2. | 2444Z2892 | [1] | TEE | KOB(Incls. O-Ring ZD12P01400) |
| . . | ZD12P01400 | [1] | O-RING | KOB(Part of 2444Z2892), ID 13.80 ± 0.19 x OD 18mm, Not Shown |
| 3. | HH25X04004G2 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of HH25X04004G2), ID 10.8mm x OD 13.2mm, Not Shown |
| 4. | LC52S00019P1 | [1] | SENSOR | SMPressure (Low Pressure) (Incls. O-Ring ZD12P01100) -- Replaces YX52S00013P1 |
| 5. | 2444Z2894 | [1] | 90 ELBOW | KOBElbow, 90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
