纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-043[00]) - CONTROL LINES, BLOCK (STD) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
636 次

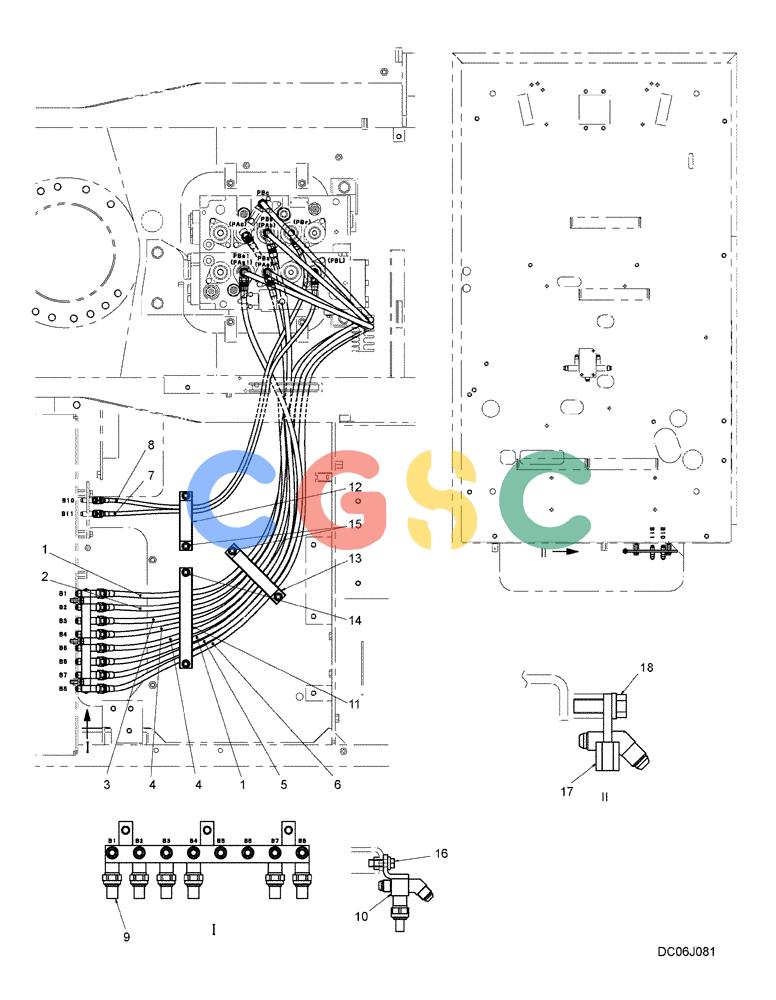

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | HX23L06150CR | [2] | HOSE,9.53mm ID x 1500mm L | SM |
| 2. | HX23L06250CB | [1] | HOSE,9.53mm ID x 2500mm L | SM |
| 3. | HX23L06155CG | [1] | HOSE,9.53mm ID x 1550mm L | SM |
| 4. | HX23L06240CH | [2] | HOSE,9.53mm ID x 2400mm L | SM |
| 5. | HX23L06160CR | [1] | HOSE,9.53mm ID x 1600mm L | KOB |
| 6. | HX23L06260CG | [1] | HOSE,9.53mm ID x 2600mm L | SM |
| 7. | 2420R349D120 | [1] | HOSE,6.35mm ID x 1200mm L | KOB |
| 8. | 2420R349D125 | [1] | HOSE,1250.00 mm | KOB Superseded by part number: HX21E04125DX |
| 9. | LC52S00019P1 | [6] | SENSOR | SMPressure (Low Pressure) (Incls. O-Ring ZD12P01100) -- Replaces YX52S00013P1 |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of LC52S00019P1), ID 10.8mm x OD 13.2mm, Not Shown |
| 10. | YN64H01312P1 | [1] | BLOCK | SM285mm Long (11-7/32 in) |
| 11. | YN64H01254P1 | [1] | PLATE | SMSupport |
| 12. | YN64H01288P1 | [1] | CLAMP | KOBPlate -- 164x36x14.5mm |
| 13. | YN64H01289P1 | [1] | CLAMP | KOBPlate -- 204x36x18mm |
| 14. | ZM73C10035 | [2] | BOLT,M10x35mm - Course Thread | KOBM10x1.50x35mm (Incls. Washer) |
| 15. | ZM73C10020 | [4] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
| 16. | HM83C10030G1 | [3] | BOLT | KOBM10x30mm |
| 17. | YN64H01291P1 | [1] | BLOCK | KOB192mm Long (7-35/64 in) |
