纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-050[01]) - CONTROLS, OPERATORS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
978 次

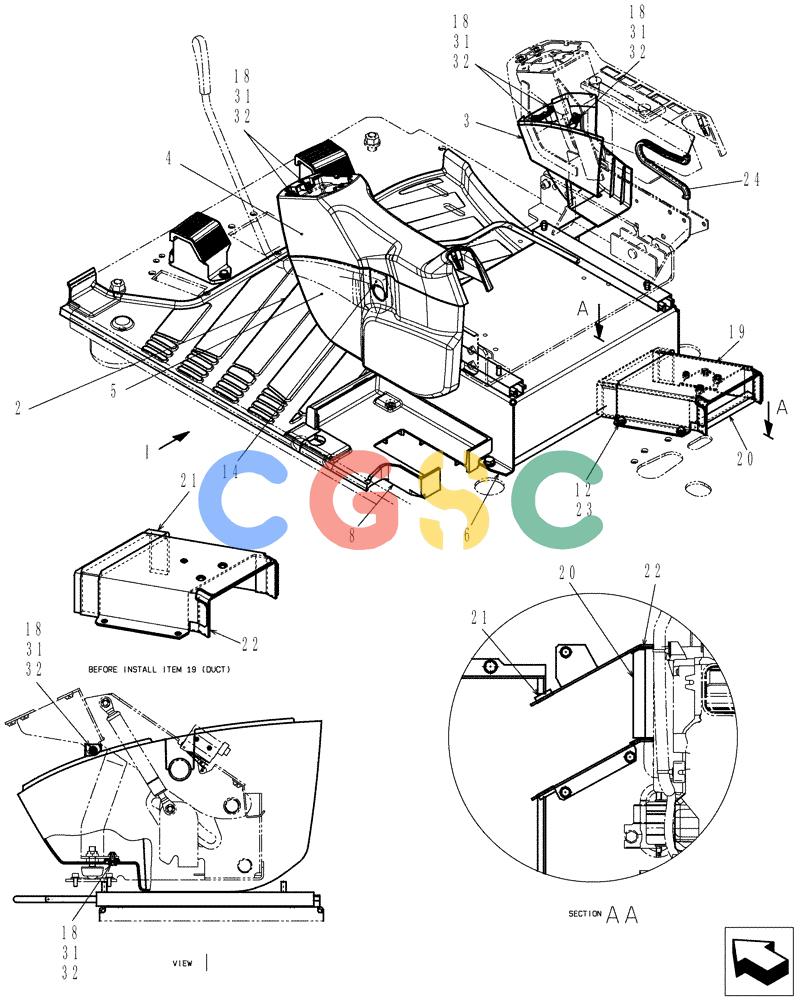

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | YN26M00072P1 | [1] | CARPET | SM |
| 3. | YN03M02109F1 | [1] | COVER | SM- LOWER RIGHT |
| 4. | YN03M02110F1 | [1] | COVER | SM- UPPER LEFT Superseded by part number: YN03M02110F3 |
| 5. | YN03M02111F1 | [1] | COVER | SM- LOWER LEFT Superseded by part number: YN03M02111F3 |
| 6. | YN25M01240P1 | [1] | SUPPORT | SM |
| 8. | YN26M00077P1 | [1] | CARPET | SM |
| 12. | ZW16P08000 | [4] | WASHER | KOBID 08 x OD 17 x Th 1.6mm |
| 14. | YN03M02112P1 | [1] | COVER | SM |
| 18. | ZM66C06016 | [10] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 19. | YN20M01797P1 | [1] | DUCT | SM |
| 20. | YN20M01794P1 | [1] | INSULATOR | SM |
| 21. | YN20M01795P1 | [1] | INSULATOR | SM |
| 22. | YN20M01796P1 | [1] | INSULATOR | SM |
| 23. | ZM73C08020 | [3] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 24. | YT02C01515D7 | [1] | GASKET | SM |
| 31. | NSS | [1] | NOT SERVICED SEPARATELY | CONSee Ref18 |
