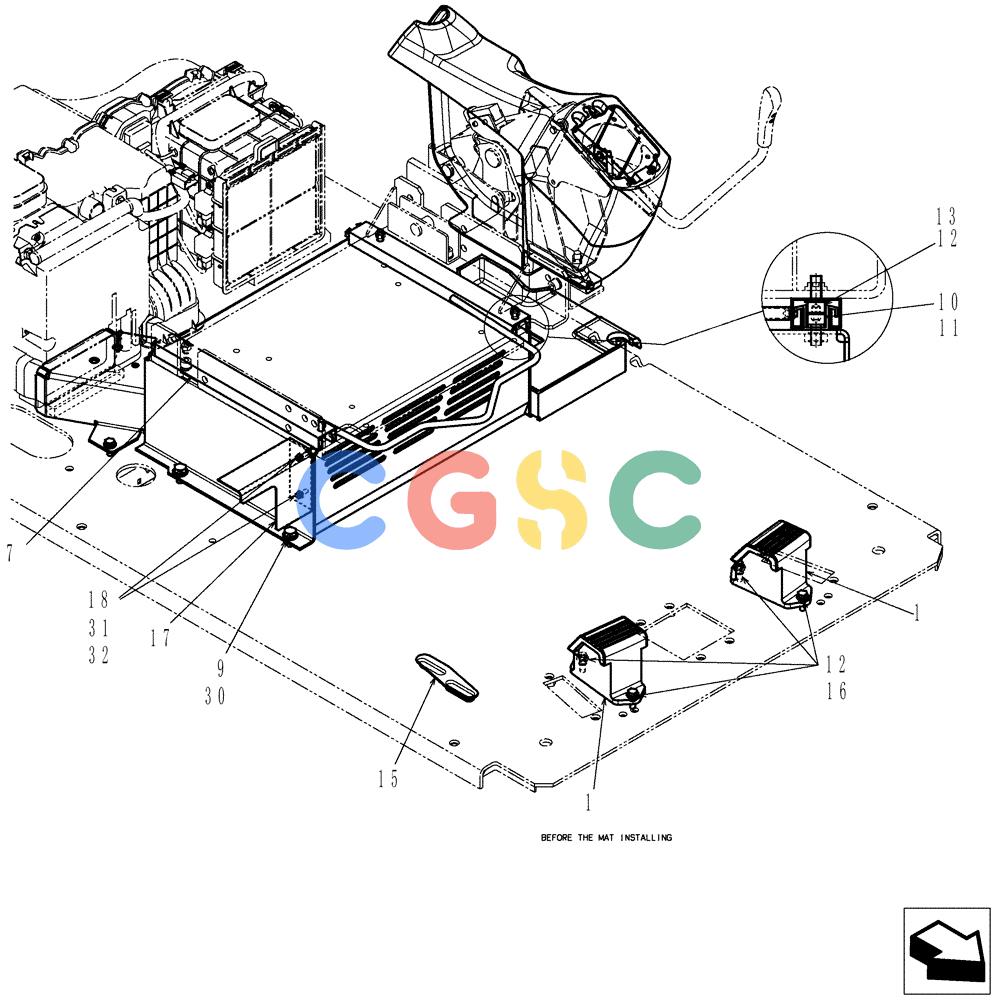

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-050[02]) - CONTROL - OPERATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
206 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN03M01859P2 | [2] | SUPPORT | SM |
| 7. | YN25M01238F1 | [1] | CROSSRAIL | SM |
| 9. | ZM73C10020 | [4] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
| 10. | ZS28C08016 | [4] | SCREW,Hex Socket Head, M8 x 16mm | KOBM08x1.25x16mm |
| 11. | ZW26K08000 | [4] | LOCK WASHER | KOBID 08 x OD 13 x Th 2.0mm |
| 12. | ZW16P08000 | [4] | WASHER | KOBID 8 x OD 17 x Th 1.6mm |
| 13. | ZS28C08020 | [4] | SCREW,Hex Socket Head, M8 x 20mm | KOBM08x1.25x20mm |
| 15. | YN03M02085P2 | [1] | GROMMET | KOB |
| 16. | ZM73C08025 | [4] | BOLT,M8x25mm - Course Thread | KOBM08x1.25x25mm (Incls. Washer) |
| 17. | YN25M01239P1 | [1] | PLATE | SM |
| 18. | ZM66C06016 | [2] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 30. | NSS | [1] | NOT SERVICED SEPARATELY | CONSee Ref 9 |
