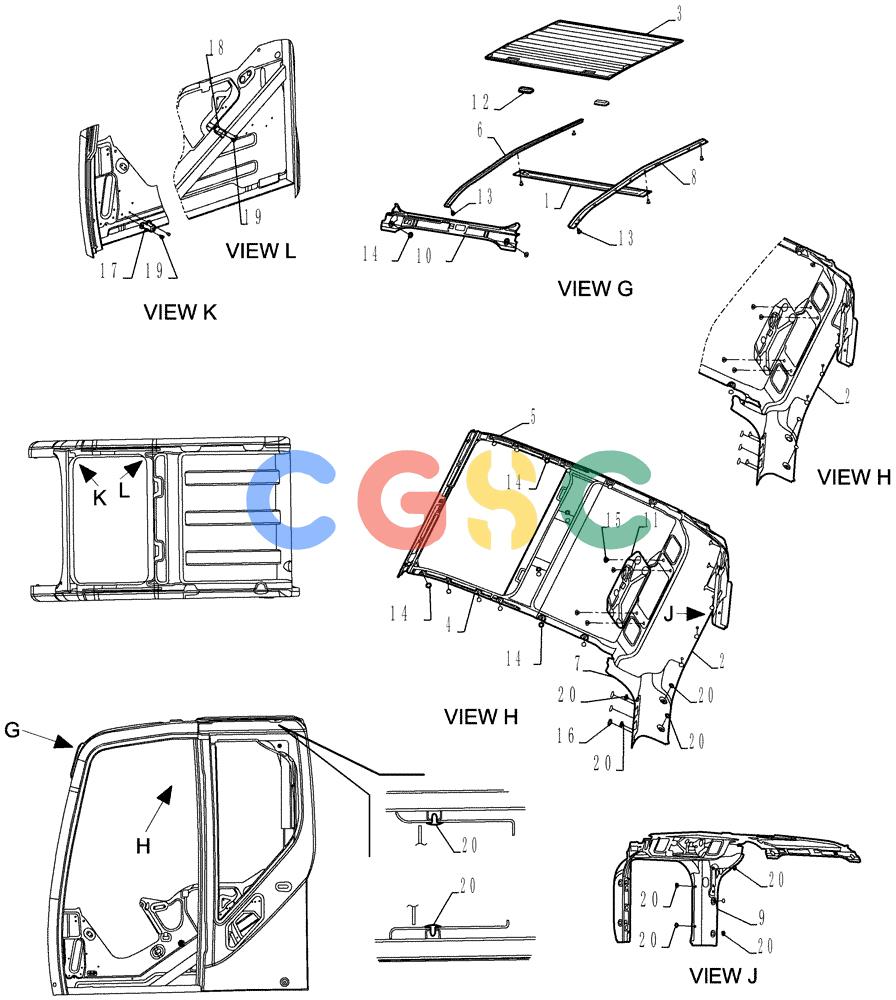

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-064[03]) - CAB ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
377 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LQ02C00032S001 | [1] | PANEL | KOB |
| 2. | LQ02C00032S002 | [1] | PANEL | KOB |
| 3. | LQ02C00032S003 | [1] | SUNSHADE | KOB Superseded by part number: LQ55C00004P1 |
| 4. | LQ02C00032S004 | [1] | PAD | KOB |
| 5. | LQ02C00032S005 | [1] | PAD | KOB |
| 6. | LQ02C00032S006 | [1] | RAIL ASSY. | KOB |
| 7. | LQ02C00032S007 | [1] | COVER | KOB |
| 8. | LQ02C00032S008 | [1] | RAIL ASSY. | KOB |
| 9. | LQ02C00032S009 | [1] | COVER | KOB |
| 10. | LQ02C00032S010 | [1] | COVER | KOB |
| 11. | LQ02C00032S011 | [1] | COVER | KOB |
| 12. | LQ02C00032S012 | [2] | HANDLE | KOB |
| 13. | LQ02C00032S013 | [6] | SCREW | KOB |
| 14. | LQ02C00032S014 | [19] | CLIP | KOB |
| 15. | LQ02C00032S015 | [4] | CLIP | KOB |
| 16. | LQ02C00032S016 | [3] | COVER | KOB |
| 17. | LQ02C00032S017 | [1] | INLET MANIFOLD | KOB |
| 18. | LQ02C00032S018 | [1] | INLET MANIFOLD | KOB |
| 19. | LQ02C00031S031 | [4] | BOLT | KOB |
| 20. | LQ02C00032S020 | [11] | CLIP | KOB |
