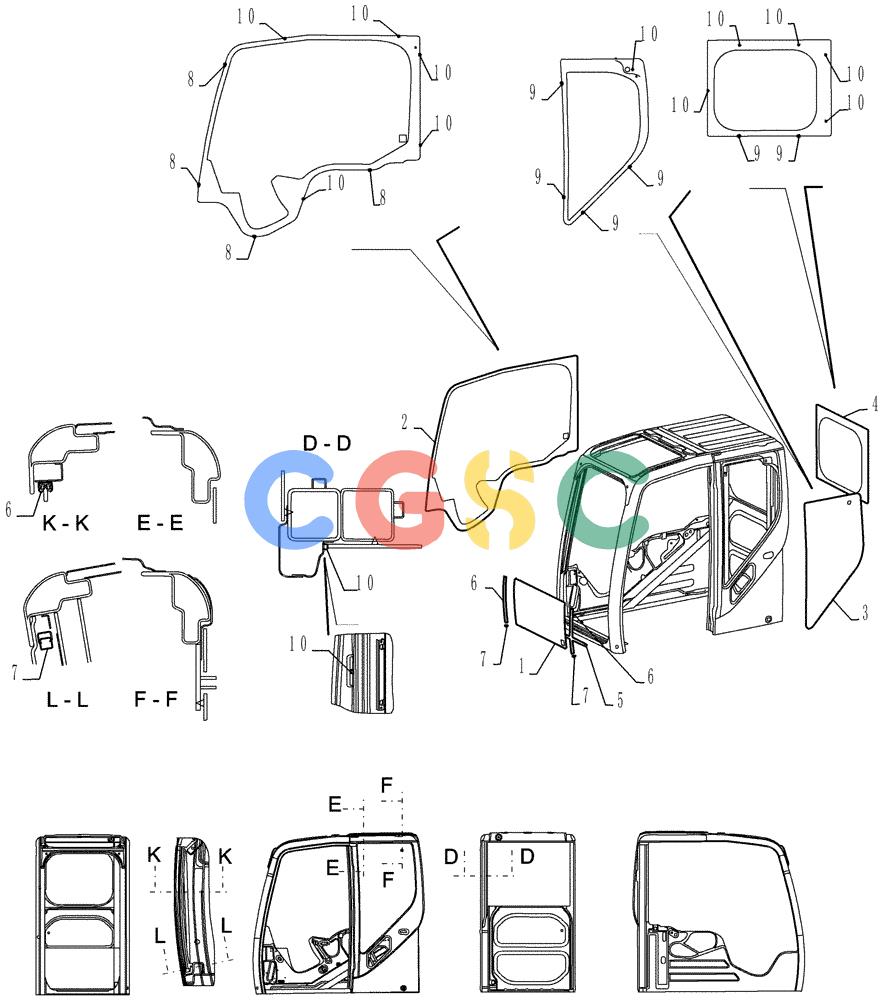

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-064[04]) - CAB ASSY, GLASS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
425 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LQ02C01301S001 | [1] | GLASS | SM |
| 2. | LQ02C01301S002 | [1] | GLASS | SM |
| 3. | LQ02C01301S003 | [1] | GLASS | SM |
| 4. | LQ02C01301S004 | [1] | GLASS | SM |
| 5. | LQ02C01301S005 | [1] | GASKET | SM |
| 6. | LQ02C01301S006 | [2] | GASKET | SM |
| 7. | LQ02C01301S007 | [2] | PLUG | SM |
| 8. | LQ02C01301S008 | [4] | SPACER | SM |
| 9. | LQ02C01301S009 | [6] | SPACER | SM |
| 10. | LQ02C01301S010 | [12] | SPACER | SM |
