纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-064[07]) - CAB - WINDOW, ROOF New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
664 次

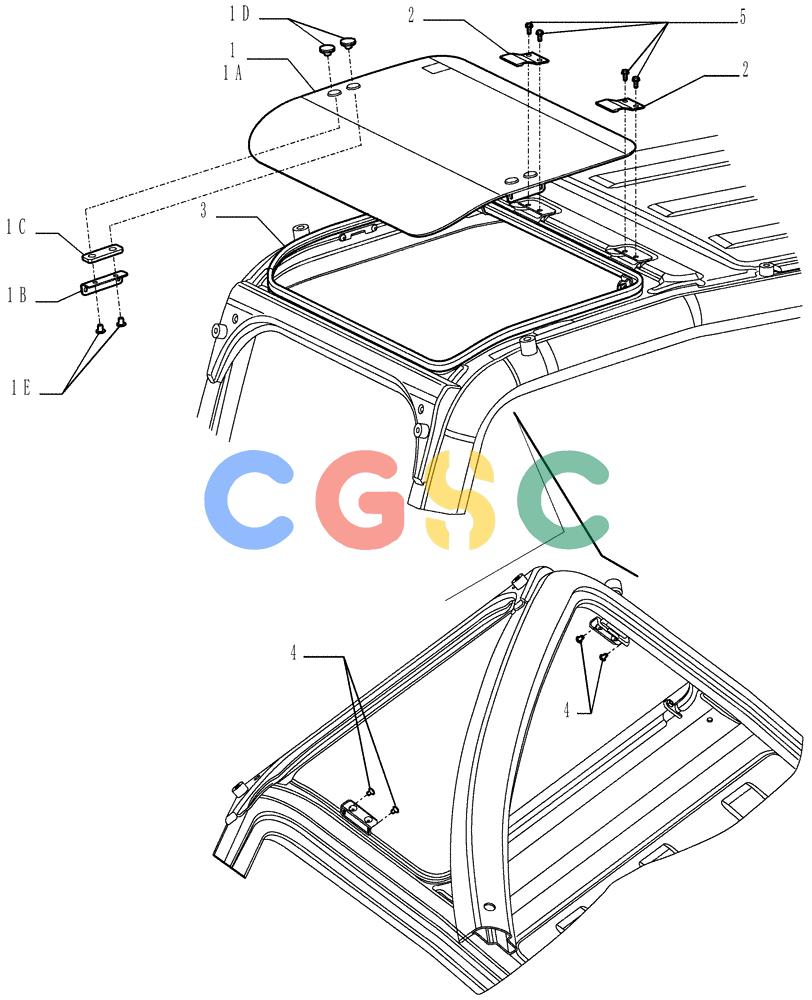

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LQ02C01314F1 | [1] | WINDOW | KOB- ASSY |
| 1A. | LQ02C01314S001 | [1] | GLASS | SM |
| 2A. | LQ02C01314S002 | [2] | BRACKET | SM Superseded by part number: LQ02C01476P1 |
| 3A. | LQ02C01314S003 | [2] | GASKET | SM Superseded by part number: LQ02C01442P1 |
| 4A. | LQ02C01314S004 | [4] | RETAINER | SM |
| 5A. | LQ02C01314S005 | [4] | SCREW | SM |
| 2. | LQ02C01304S002 | [2] | BRACKET | KOB |
| 3. | LQ02C01304S003 | [1] | SEAL, GLASS | KOBSEAL,WINDOW |
| 4. | LQ02C01304S004 | [4] | SCREW | KOB Superseded by part number: LQ02C00031S030 |
| 5. | LQ02C01304S005 | [4] | BOLT | KOB Superseded by part number: ZM22C08016 |
