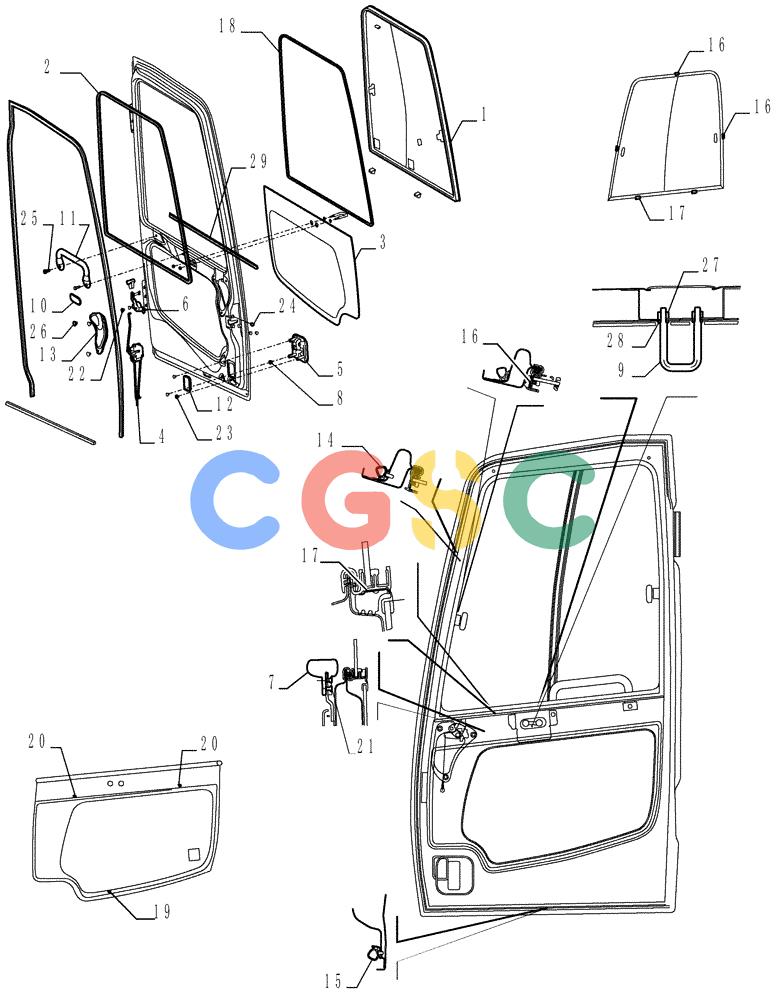

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-064[08]) - CAB - DOOR ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
870 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| .. | LQ51C00003F1 | [1] | DOOR | SMCab Door Assembly, Incl 1 - 29 |
| 1. | LQ02C01315F1 | [1] | WINDOW FRAME | KOBAssy (See Fig 01-064[09]) |
| 2. | LQ51C00003S002 | [1] | TRIM | KOB |
| 3. | LQ51C00003S003 | [1] | GLASS | KOB |
| 4. | LQ51C00003S004 | [1] | LOCK | KOB |
| 5. | LQ51C00003S005 | [1] | DOOR HANDLE | KOB |
| 6. | LQ51C00003S006 | [1] | DOOR HANDLE | KOB |
| 7. | LQ51C00003S007 | [1] | HANDLE GRIP | KOB |
| 8. | LQ51C00003S008 | [1] | CLIP | KOB |
| 9. | LQ51C00003S009 | [1] | HOOK | KOB |
| 10. | LQ51C00003S010 | [1] | GROMMET | KOB |
| 11. | LQ51C00003S011 | [1] | DOOR HANDLE | KOB |
| 12. | LQ51C00003S012 | [1] | COVER | KOB |
| 13. | LQ51C00003S013 | [1] | COVER | KOB |
| 14. | LQ51C00003S014 | [1] | WEATHERSTRIP | KOB |
| 15. | LQ51C00003S015 | [1] | WEATHERSTRIP | KOB |
| 16. | LQ51C00003S016 | [3] | SPACER | KOB |
| 17. | LQ51C00003S017 | [2] | SPACER | KOB |
| 18. | LQ51C00003S018 | [1] | SEAL, GLASS | KOBSEAL,WINDOW |
| 19. | LQ02C01301S009 | [4] | SPACER | SM |
| 20. | LQ51C00003S020 | [2] | SPACER | KOB Superseded by part number: LQ02C01301S010 |
| 21. | LQ51C00003S021 | [2] | SCREW | KOB |
| 22. | LQ51C00003S022 | [2] | SCREW | KOB |
| 23. | LQ02C00031S030 | [3] | SCREW | KOB |
| 24. | LQ51C00003S024 | [3] | SET SCREW | KOB |
| 25. | LQ02C00031S026 | [2] | BOLT | KOB |
| 26. | LQ51C00003S026 | [3] | RIVET | KOB |
| 27. | LQ51C00003S027 | [2] | SPRING NUT | KOB |
| 28. | LQ51C00003S028 | [2] | WASHER | KOB |
| 29. | LQ51C00003S029 | [1] | TRIM | KOB |
