纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-064[09]) - CAB - DOOR WINDOW New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
730 次

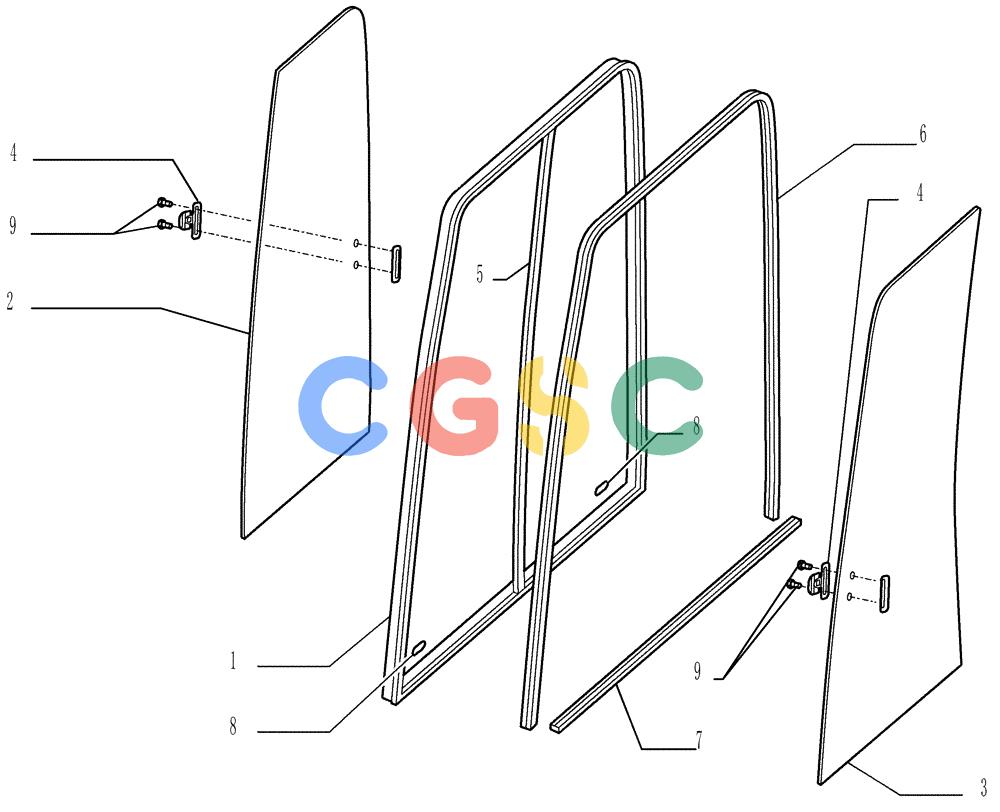

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LQ02C01315F1 | [1] | WINDOW FRAME | KOBAssembly, Incl 1 - 9 |
| 1. | LQ02C01315S001 | [1] | WINDOW FRAME | KOB |
| 2. | LQ02C01315S002 | [1] | GLASS | SM(Toward Cab Rear) |
| 3. | LQ02C01315S003 | [1] | GLASS | SM(Toward Cab Front) |
| 4. | LQ02C01315S004 | [2] | LOCK | KOB |
| 5. | LQ02C01315S005 | [1] | SEAL, GLASS | KOB |
| 6. | LQ02C01315S006 | [1] | SEAL, GLASS | KOB |
| 7. | LQ02C01315S007 | [1] | SEAL, GLASS | KOB |
| 8. | LQ02C01315S008 | [2] | STOP | KOB |
| 9. | LQ02C01315S009 | [4] | SCREW | KOB |
