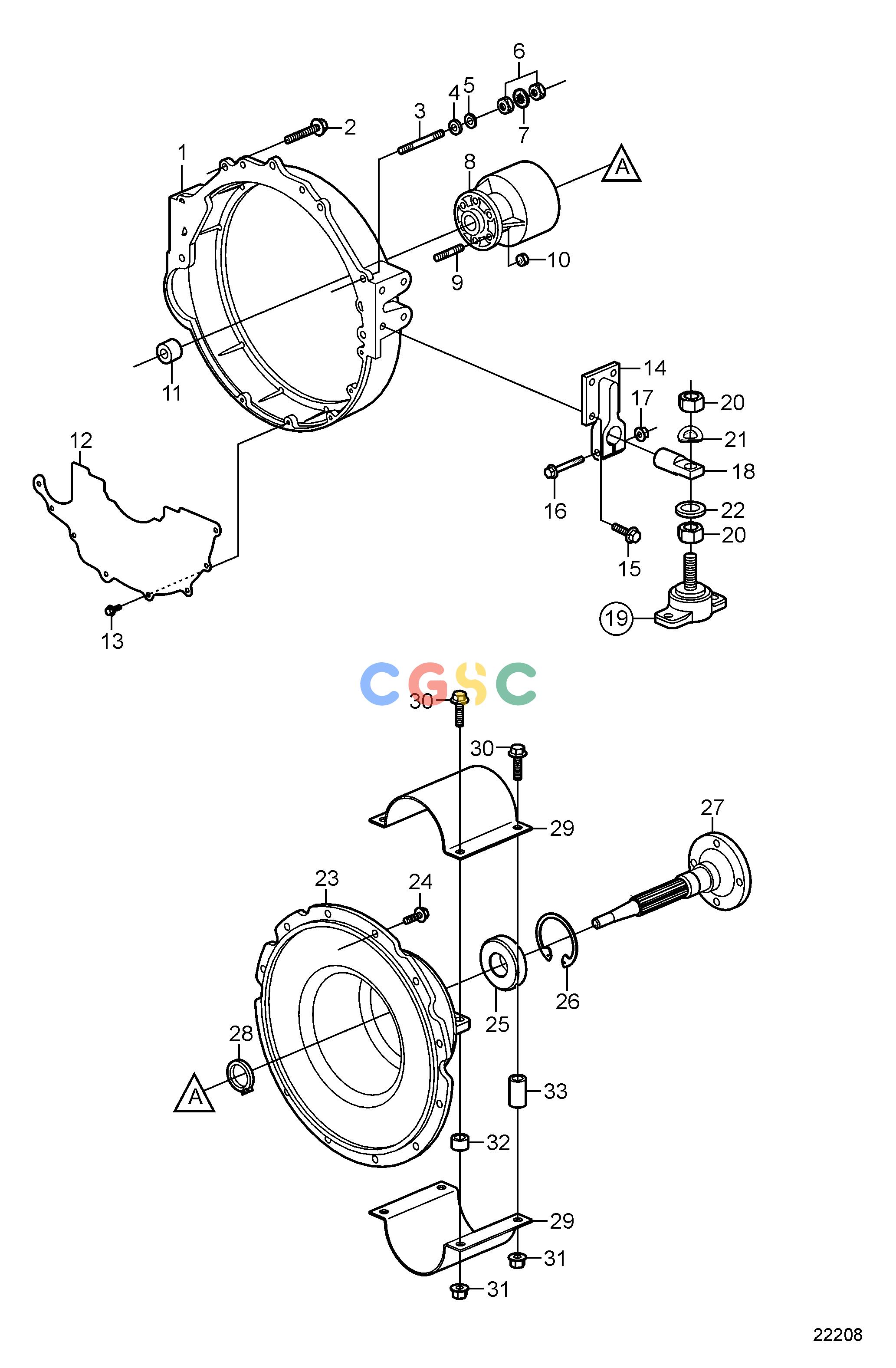

沃尔沃零件查询5.0GXi-F; 5.0GXi-FF; 5.0OSi-F; 5.0OSi-FFEngineJackshaftEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
888 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3851722
|
[1] |
Flywheel housing
|
|
| 2. |
3853367
|
[4] |
Flange screw
|
|
| 3. |
3862494
|
[2] |
Stud
|
|
| 4. |
980933
|
[2] |
Washer
|
|
| 5. |
3852046
|
[2] |
Spring washer
|
|
| 6. |
971074
|
[6] |
Hexagon nut
|
|
| 7. |
982679
|
[4] |
Toothed washer
|
|
| 8. |
3858437
|
[1] |
Rubber coupling
|
|
| 9. |
3853274
|
[6] |
Stud
|
|
| 10. |
3853273
|
[6] |
Nut
|
|
| 11. |
3860697
|
[1] |
Bushing
|
|
| 12. |
3854604
|
[1] |
Cover
|
|
| 13. |
3852421
|
[4] |
Screw
|
|
| 14. |
3862495
|
[2] |
Bracket
|
|
| 15. |
965187
|
[8] |
Flange screw
|
|
| 16. |
965222
|
[2] |
Flange screw
|
|
| 17. |
971098
|
[2] |
Flange lock nut
|
|
| 18. |
3862496
|
[2] |
Pin
|
|
| 19. |
3807621
|
[2] |
Anchorage
|
|
| 20. |
955860
|
[4] |
Hexagon nut
|
|
| 21. |
941914
|
[2] |
Spring washer
|
|
| 22. |
955902
|
[2] |
Washer
|
|
| 23. |
3851727
|
[1] |
Bearing housing
|
|
| 24. |
946752
|
[11] |
Flange screw
|
|
| 25. |
181877
|
[1] |
Ball bearing
|
|
| 26. |
914540
|
[1] |
Snap ring
|
|
| 27. |
3851724
|
[1] |
Adapter kit
|
|
| 28. |
914465
|
[1] |
Snap ring
|
|
| 29. |
3851729
|
[2] |
Adapter kit
|
|
| 30. |
948039
|
[4] |
Flange screw
|
L=65mm
|
| 31. |
977938
|
[4] |
Flange lock nut
|
|
| 32. |
983740
|
[8] |
Spacer sleeve
|
L=10mm
|
| 33. |
983741
|
[4] |
Spacer sleeve
|
L=33mm
|
