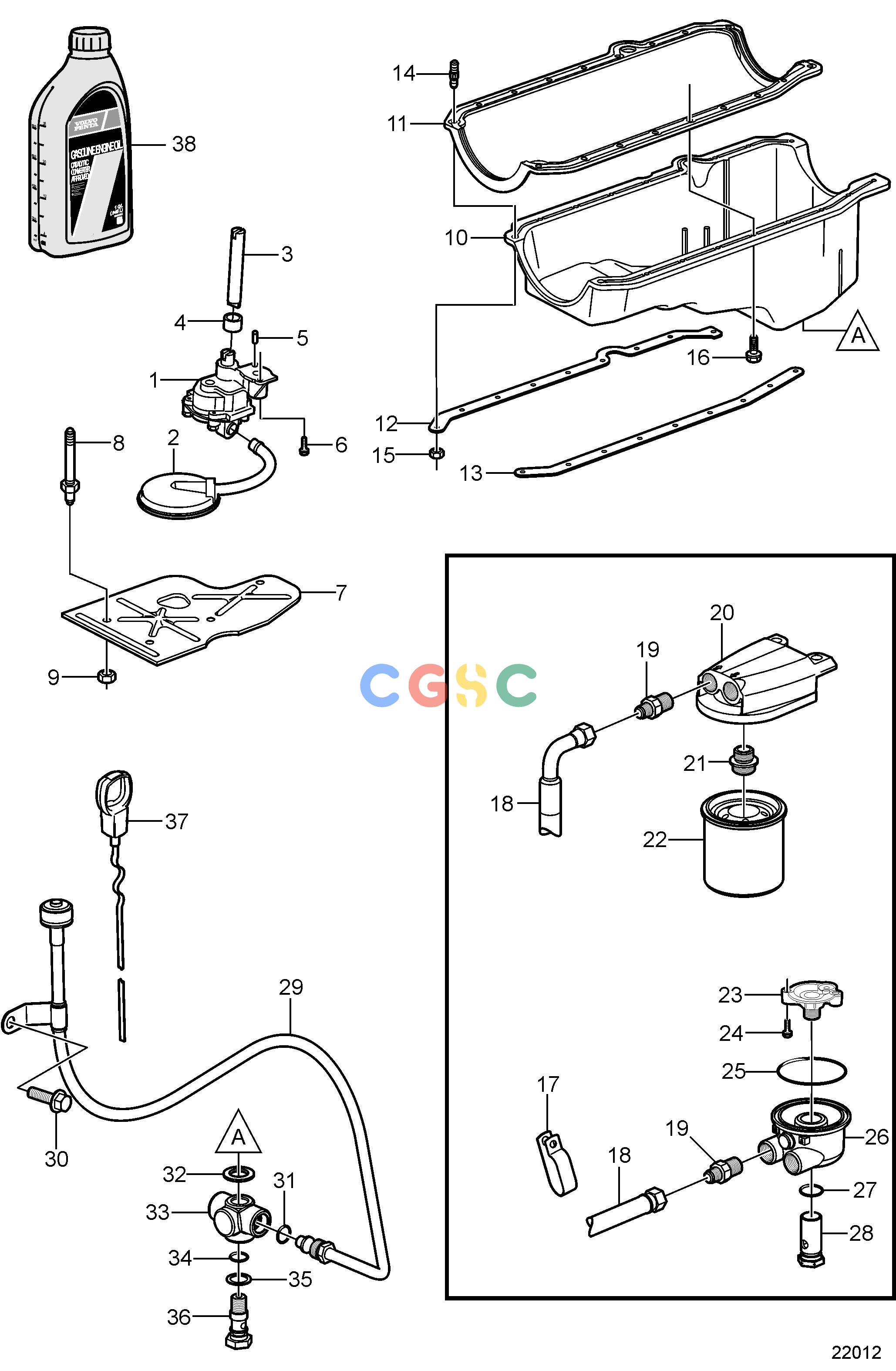

沃尔沃零件查询5.0GXi-F; 5.0GXi-FF; 5.0OSi-F; 5.0OSi-FFEngineOil Pan and Oil PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
880 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3856125
|
[1] |
Oil pump
|
|
| 2. |
3856126
|
[1] |
Strainer
|
|
| 3. |
3853198
|
[1] |
Shaft
|
|
| 4. |
3853199
|
[1] |
Retainer
|
|
| 5. |
3855972
|
[2] |
Pin
|
|
| 6. |
3853234
|
[1] |
Bolt
|
|
| 7. |
3852744
|
[1] |
Baffle
|
|
| 8. |
3862354
|
[6] |
Stud
|
|
| 9. |
3857664
|
[5] |
Nut
|
|
| 10. |
3857778
|
[1] |
Sump
|
|
| 11. |
3856138
|
[1] |
Gasket kit
|
|
| 12. |
3856121
|
[1] |
Reinforcement
|
Starboard
|
| 13. |
3856120
|
[1] |
Reinforcement
|
Port
|
| 14. |
3853202
|
[4] |
Stud
|
|
| 15. |
3856930
|
[4] |
Nut
|
|
| 16. |
3852595
|
[14] |
Bolt
|
|
| 17. |
3860075
|
[1] |
Attaching clamp
|
|
| 18. |
3808639
|
[2] |
Oil line
|
|
| 19. |
3860234
|
[4] |
Fitting
|
|
| 20. |
3840727
|
[1] |
Adapter
|
|
| 21. |
3852015
|
[1] |
Connector
|
|
| 22. |
835440
|
[1] |
Oil filter
|
|
| 23. |
3852219
|
[1] |
Valve
|
|
| 24. |
3852133
|
[2] |
Screw
|
|
| 25. |
3852470
|
[1] |
O-ring
|
|
| 26. |
3860060
|
[1] |
Adapter
|
|
| 27. |
3852089
|
[1] |
O-ring
|
|
| 28. |
3853495
|
[1] |
Retainer
|
|
| 29. |
3841322
|
[1] |
Tube
|
|
| 30. |
3853405
|
[1] |
Screw
|
|
| 31. |
3852033
|
[1] |
O-ring
|
|
| 32. |
3851981
|
[1] |
Washer
|
|
| 33. |
3587783
|
[1] |
Fitting
|
|
| 34. |
3853674
|
[1] |
O-ring
|
|
| 35. |
3852007
|
[1] |
Washer
|
|
| 36. |
888958
|
[1] |
Retainer
|
|
| 37. |
3862844
|
[1] |
Gauge
|
|
| 38. |
7744830_000
|
|
Oil
|
|
