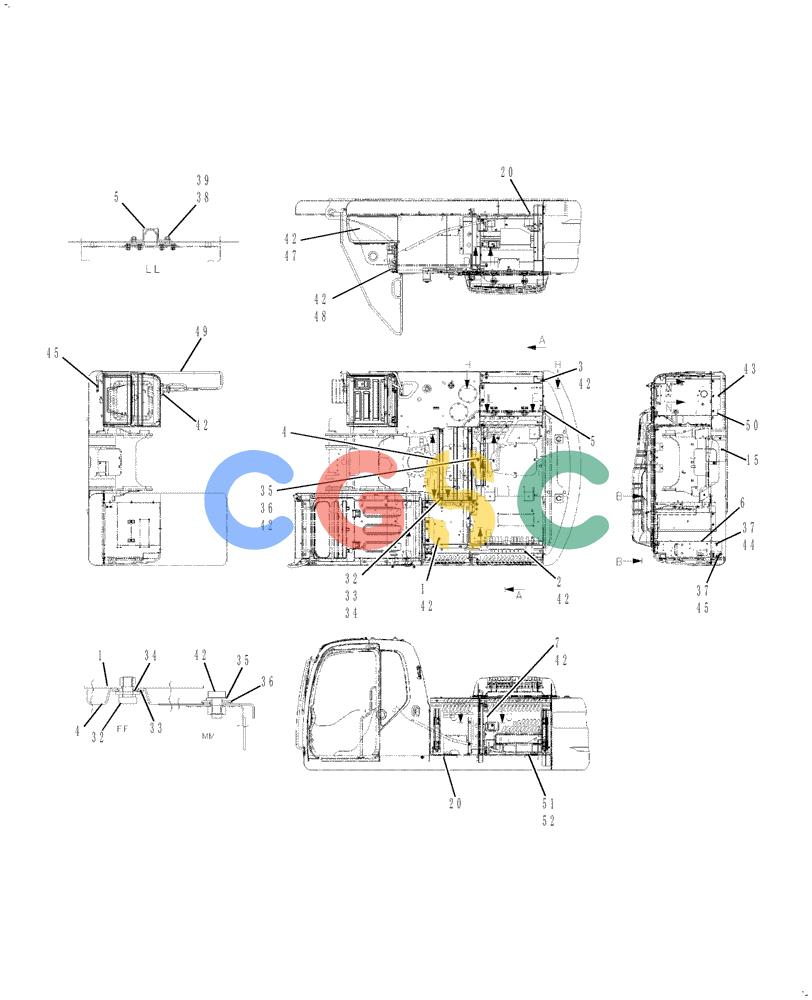

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-069[01]) - GUARD INSTAL (COMMON) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
195 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONOrder Components 1-1 and 1-2 |
| 1-2. | LC21C01040P1 | [1] | INSULATING PANEL | KOBPart Of Ref 1 |
| 3. | YN21C03181P2 | [1] | GUARD | KOB |
| 4. | YN21C03555P1 | [1] | GUARD | KOB |
| 5. | YN21C03238P1 | [1] | PLATE | KOB |
| 6. | YN21C03548P2 | [1] | PILLAR | KOB |
| 7. | YN21C03275P1 | [1] | PILLAR | KOB |
| 15. | YN21C02423P1 | [1] | PLATE | KOB |
| 20. | YN21C02425P1 | [2] | STAY | KOB |
| 32. | ZM32C12025 | [4] | BOLT | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) |
| 33. | YN21C01395P1 | [4] | WASHER | KOBID 23 x OD 38 x Th 2.0mm |
| 34. | YN21C01396P1 | [4] | WASHER | KOBID 13 x OD 22 x Th 4.5mm |
| 35. | YN21C02138P1 | [2] | WASHER | KOBID 12.40 x OD 38 x Th 6.0mm |
| 36. | YN21C02147P1 | [2] | WASHER | KOBID 17.60 x OD 32.50 x Th 1.5mm |
| 37. | 2418T21942 | [3] | WASHER | KOBID 13 x OD 45 x Th 4.5mm |
| 38. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 39. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 42. | ZM73C12025 | [44] | BOLT,M12x25mm - Course Thread | KOBM12x1.75x25mm (Incls. Washer) |
| 43. | ZM73C12030 | [10] | BOLT,M12x30mm - Course Thread | KOBM12x1.75x30mm (Incls. Washer) |
| 44. | ZM73C12035 | [1] | BOLT,M12x35mm - Course Thread | KOBM12x1.75x35mm (Incls. Washer) |
| 45. | ZM73C12040 | [4] | BOLT,M12x40mm - Course Thread | KOBM12x1.75x40mm (Incls. Washer) |
| 49. | LQ21C01925P1 | [1] | STAY | KOB |
| 50. | YN21C03553P3 | [1] | PILLAR | KOB |
| 51. | 2416T6289D6 | [1] | STAY | KOB |
| 52. | 2419R9D2 | [1] | COTTER PIN | KOBOD 08mm x 27.7mm Long |
